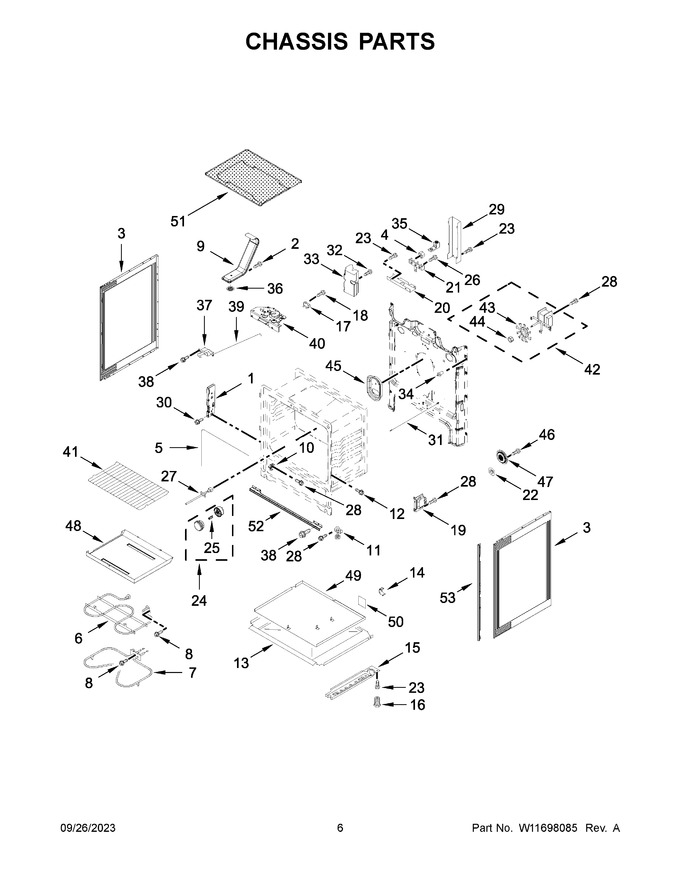

04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 2 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 5 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 154.62 | ||||
| 7 | WP9755770 | Element, Bake (Replaces: 9755770) |
|
Immediately | $ 117.66 | ||||
| 8 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 9 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 10 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 11 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | W10134121 | Tray, Insulation |
|
$ 44.75 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 19 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 22 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 24 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 25 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 29 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 31 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 32 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 33 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 153.79 | ||||
| 34 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 35 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 36 | W11268772 | Screen, Vent (Replaces: W11092984) |
|
Immediately | $ 218.56 | ||||
| 37 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 256.36 | |||||
| 38 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 39 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 40 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 309.55 | |||||
| 41 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 46.84 | ||||
| 42 | W11582241 | Fan, Convection (Replaces: W11403617) |
|
Immediately | $ 134.73 | ||||
| 43 | W11548753 | Blade, Fan (Replaces: W11425715) |
|
Immediately | $ 157.63 | ||||
| 44 | W11548755 | Nut, Acorn (lh) (Replaces: W11433702) |
|
$ 15.38 | |||||
| 45 | W10134126 | Bracket, Fan |
|
$ 23.98 | |||||
| 46 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 47 | WPW10134124 | Cover, Conv Fan (Replaces: W10134124) |
|
Immediately | $ 102.59 | ||||
| 48 | W10183712 | Tray, Hidden Bake |
|
$ 243.95 | |||||
| 49 | W10134125 | Shield, Heat |
|
$ 159.37 | |||||
| 50 | W10646923 | Card, Insulator |
|
$ 19.57 | |||||
| 51 | W11692811 | Basket, Airfry (Replaces: W11661815) |
|
Immediately | $ 117.69 | ||||
| 52 | W11464547 | Bracket, Front Frame |
|
$ 45.89 | |||||
| 53 | W11594227 | Barrier Rail, Rubber (left And Right) (Replaces: W11510560) |
|
Immediately | $ 76.68 | ||||
| 15A | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| NI | W11684918 | Insulation, Flue (Replaces: W10333344) |
|
Immediately | $ 35.48 | ||||
| NI | W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 116.41 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11684917 | Insulation, Back (Replaces: W11127324) |
|
$ 124.36 |
