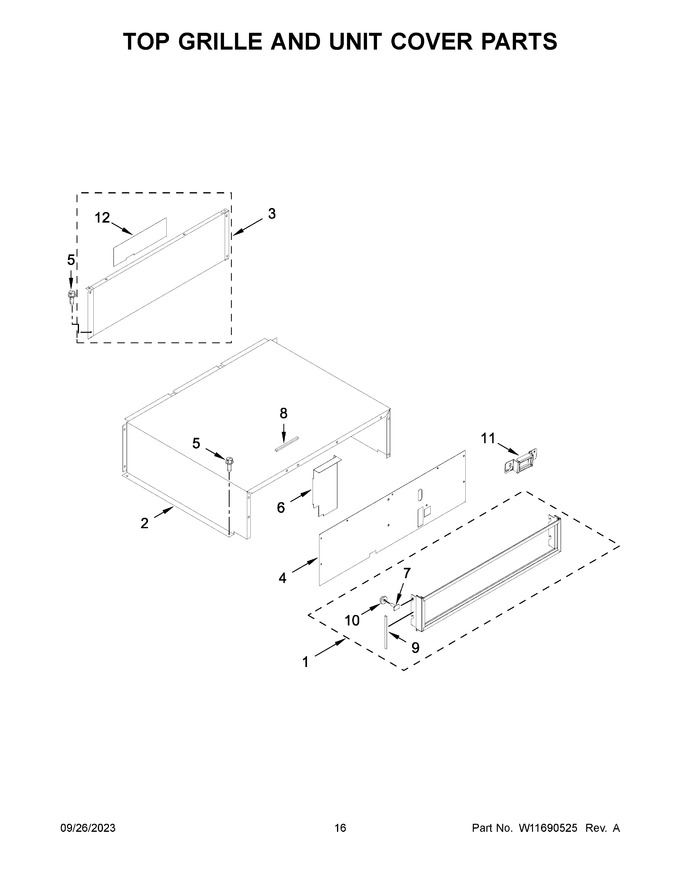

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2317080S		Assembly, Top Grille   (Replaces: 2317080S)				$ 432.71
2	W11735285		Cover, Unit   (Replaces: W10545068)			Immediately	$ 205.97
3	2256466		Panel, Unit Back				$ 327.22
4	W11435372		Cover, Unit Front			Immediately	$ 47.65
5	W10784922		Screw (black)		Appelez-nous	-
6	W10645086		Divider, Unit Air				$ 102.80
7	2003347		Bolt				$ 14.99
8	W10645113		Gasket, Unit Cover		Appelez-nous	-
9	2320528		Gasket, Foam		Appelez-nous	-
10	WP488130		Nut   (Replaces: 1161548)				$ 7.32
11	W11356980		Cover, Safety Switch		Appelez-nous	-
12	W11244166		Insulation, Unit Back Panel				$ 78.99
