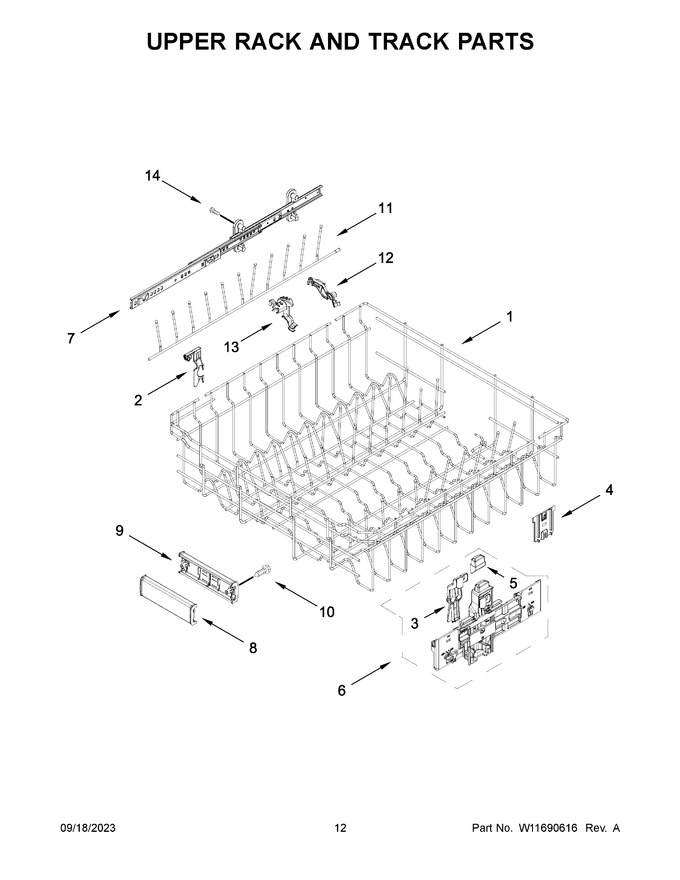

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11672788		Dishrack, Upper   (Replaces: W10847876)			Immediately	$ 195.18
2	W11545820		Clip, Stemware   (Replaces: W11310287)			Immediately	$ 29.37
3	W11180178		Leveler, Adjuster Arm				$ 76.16
4	W11580020		Clip, Adjuster Arm   (Replaces: W11180605)			Immediately	$ 62.65
5	W11267699		Button, Adjuster Arm				$ 74.99
6	W11690884		Adjustment Assembly (left Hand)   (Replaces: W11268082)				$ 64.13
7	W11778689		Track, Assembly (left Hand)   (Replaces: W11212732)				$ 85.81
8	W11268682		Handle, Dishrack Front		Appelez-nous	-
9	W11268681		Handle, Dishrack Rear			Immediately	$ 116.36
10	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
11	W11806546		Tine Row, Fold Down   (Replaces: W11186528)			Immediately	$ 68.67
12	W11627535		Clip, Pivot   (Replaces: W11179753)				$ 26.48
13	W11179755		Positioner				$ 23.12
14	W11847092		Screw   (Replaces: W11170270)			Immediately	$ 11.75
6A	W11268078		Adjustment Assembly (right Hand)				$ 114.47
7A	W11778690		Track, Assembly (right Hand)   (Replaces: W11212734)			Immediately	$ 85.81
