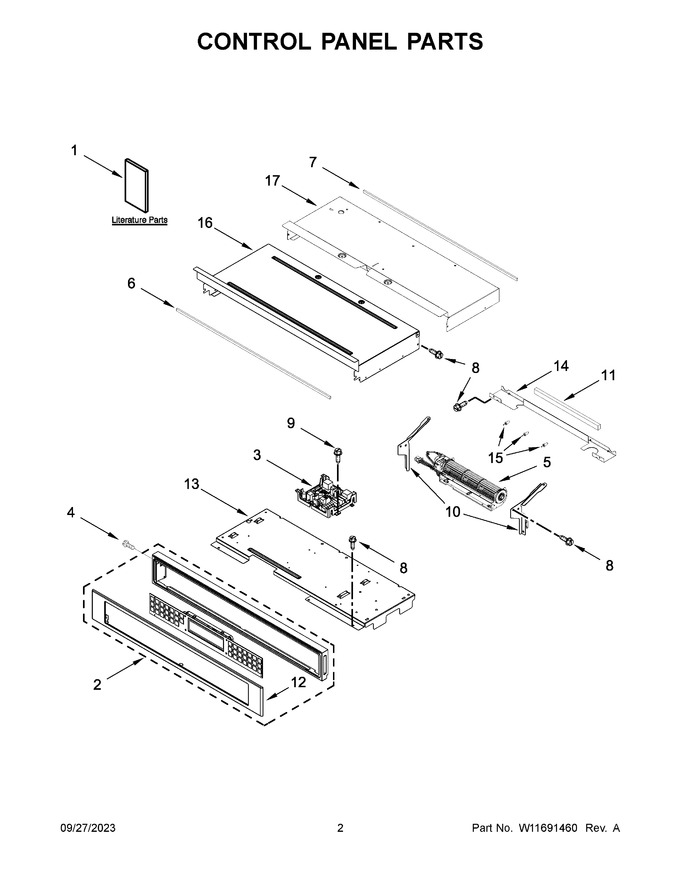

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340821		Owner's Manual		Appelez-nous	-
2	W11600644		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11304121)				$ 914.78
3	W11448962		Appliance Manager, Copernicus (upper)   (Replaces: W11249218)			Immediately	$ 325.47
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
7	W10728475		Gasket, Rubber				$ 38.13
8	7101P42660		Screw		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10588746		Skin, Control Panel (white)		Appelez-nous	-
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W11821591		Cover, 30 In Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
17	W11223325		Cover, 30 In Chassis Top Back				$ 85.77
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10588740		Skin, Control Panel (stainless)				$ 214.05
12B	W10776407		Skin, Control Panel (black Stainless)				$ 285.61
1A	W11382210		Quick Start Guide		Appelez-nous	-
1B	W11479717		Tech Sheet		Appelez-nous	-
2A	W11600643		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11304099)			Immediately	$ 939.09
2B	W11600642		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W11304119)				$ 948.17
3A	W11598200		Appliance Manager, Copernicus (without Power Supply) (lower)   (Replaces: W11249217)			Immediately	$ 365.88
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11245674		Harness, Main			Immediately	$ 401.44
NI	W11788676		Harness, Signal   (Replaces: W11256625)			Immediately	$ 242.33
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
