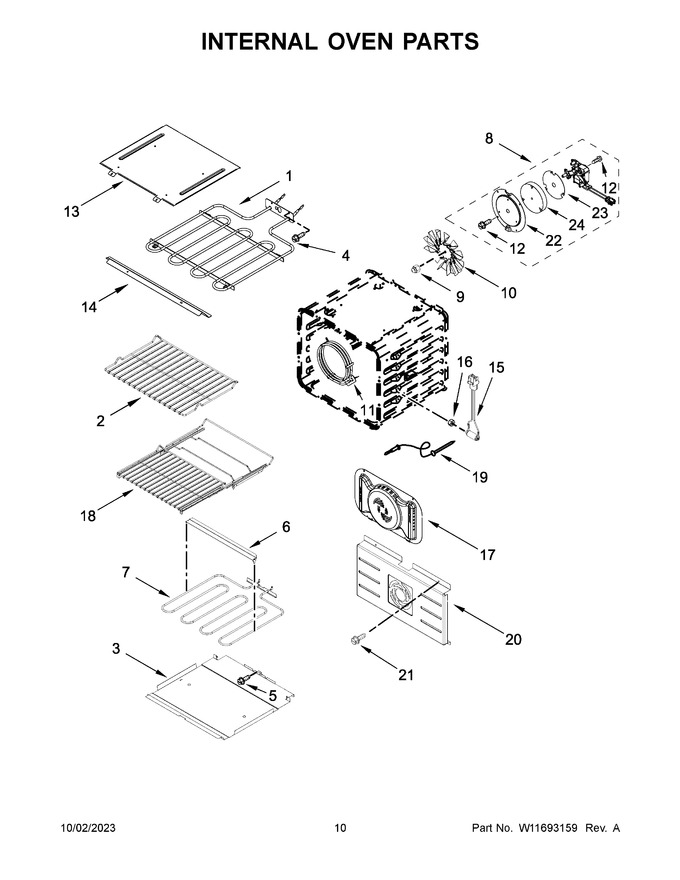

06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598122		Element, Broil   (Replaces: W11238159)				$ 124.47
2	W11242906		Rack, Oven				$ 195.50
3	W10318198		Tray, Hidden Bake				$ 186.50
4	7101P43460		Screw		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10282957		Crossbar, Hidden Bake Tray				$ 45.21
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 102.53
8	W11602628		Convect Motor Assembly   (Replaces: W11244895)				$ 381.37
9	W11548755		Nut, Acorn (lh)   (Replaces: W11433702)				$ 14.47
10	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 150.12
11	W11678579		Element, Convection   (Replaces: W10546519)			Immediately	$ 115.24
12	W10850807		Screw   (Replaces: W10720084)				$ 7.41
13	W11598121		Reflector, Broil   (Replaces: W11235537)				$ 59.23
14	W10588737		Shield, Broil Front				$ 100.38
15	W11821374		Jack, Meat Probe   (Replaces: W11252826)				$ 73.50
16	W11231343		Nut, Locking   (Replaces: W11033111)				$ 12.83
17	W11241587		Baffle, Bow Tie   (Replaces: W11192519)				$ 229.05
18	W11256305		Rack, Sliding				$ 348.18
19	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 92.12
20	W10521808		Cover, Baffle				$ 230.53
21	W10739592		Screw		Appelez-nous	-
22	W11602630		Cover, Convect Plate   (Replaces: W11235449)		Appelez-nous	-
23	W11602629		Plate, Convect Motor   (Replaces: W11251715)		Appelez-nous	-
24	W11706806		Insulation, Convect Motor   (Replaces: W11251716)		Appelez-nous	-
