SELECT A DIAGRAM

01 - Cover Sheet

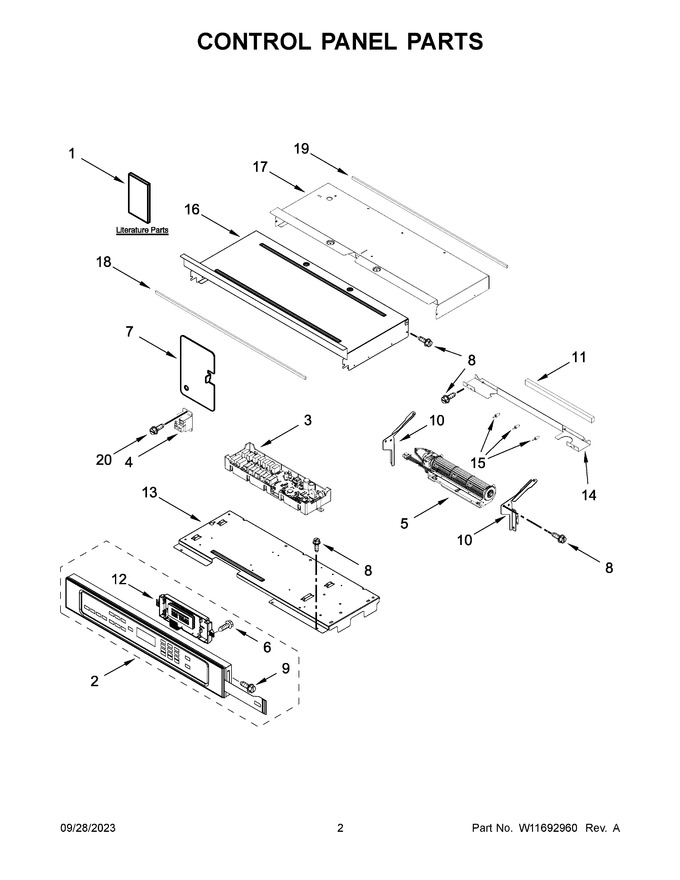

02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11656312		Owner's Manual		Appelez-nous	-
2	W11655070		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11467621)				$ 546.62
3	W11649130		Control, Maxwell   (Replaces: W11556518)				$ 375.23
4	W10874478		Relay, Power (12v Dc Coil)				$ 338.33
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	7101P40360		Screw		Appelez-nous	-
7	W11533682		Cover, Wifi		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10752316		Interface (maxwell), User Board   (Replaces: W10752316)			Immediately	$ 423.85
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W11821591		Cover, 30 In Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
17	W11223325		Cover, 30 In Chassis Top Back				$ 85.77
18	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
19	W10728475		Gasket, Rubber				$ 38.13
20	7101P49860		Screw		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11553924		Quick Start Guide		Appelez-nous	-
1B	W11604693		Tech Sheet		Appelez-nous	-
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 231.69
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	4450800		Screw, Grounding				$ 13.47
NI	W11476030		Harness, Main				$ 353.06
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11233570		Harness, Console			Immediately	$ 234.66
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11249912		Harness, Signal		Appelez-nous	-
NI	W10655464		Bracket, Harness				$ 40.71

    View Diagram in Separate Window       Print Part List
