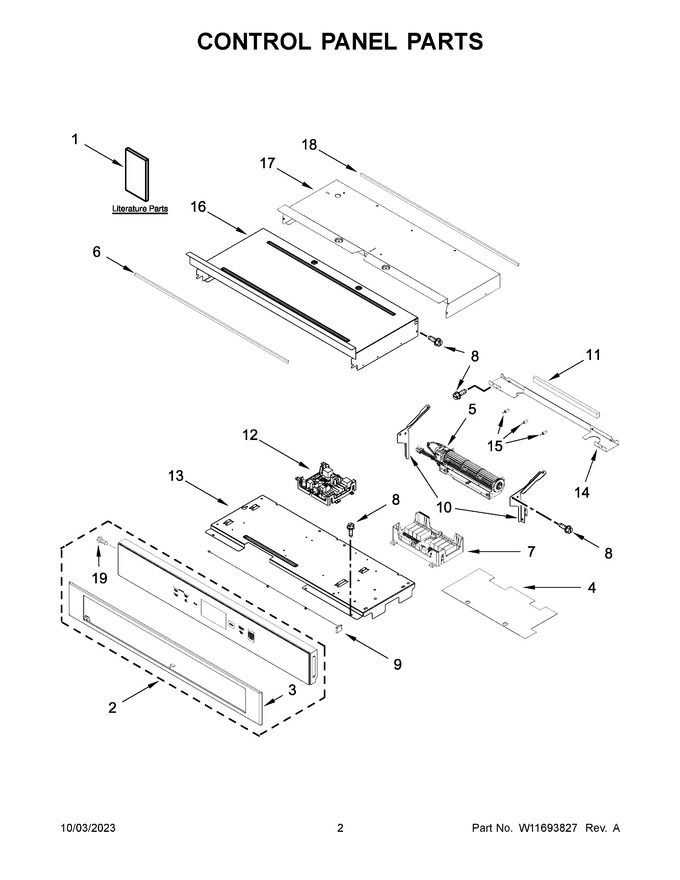

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11340821		Owner's Manual		Appelez-nous	-
2	W11598213		Assembly, Control Panel (stainless)   (Replaces: W11243254)		Appelez-nous	-
3	W10588740		Skin, Control Panel (stainless)				$ 214.05
4	W11295344		Pad, Insulator   (Replaces: W10752925)		Appelez-nous	-
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
7	W11294389		Appliance Manager, Expansion   (Replaces: W10890118)		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W11537624		Antenna   (Replaces: W11409842)				$ 106.06
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11294388		Control (copernicus)   (Replaces: W10850871)				$ 474.19
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W10351295		Bumper				$ 22.12
16	W11821591		Cover, 30 In Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
17	W11223325		Cover, 30 In Chassis Top Back				$ 85.77
18	W10728475		Gasket, Rubber				$ 38.13
19	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11382210		Quick Start Guide		Appelez-nous	-
1B	W11477595		Tech Sheet		Appelez-nous	-
2A	W11598212		Assembly, Control Panel (black Stainless)   (Replaces: W11243255)		Appelez-nous	-
3A	W10776407		Skin, Control Panel (black Stainless)				$ 285.61
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11319490		Harness, Signal		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 21.12
NI	4448664		Clamp, Conduit				$ 21.41
NI	W11342420		Harness, Main		Appelez-nous	-
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11233570		Harness, Console			Immediately	$ 234.66
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
