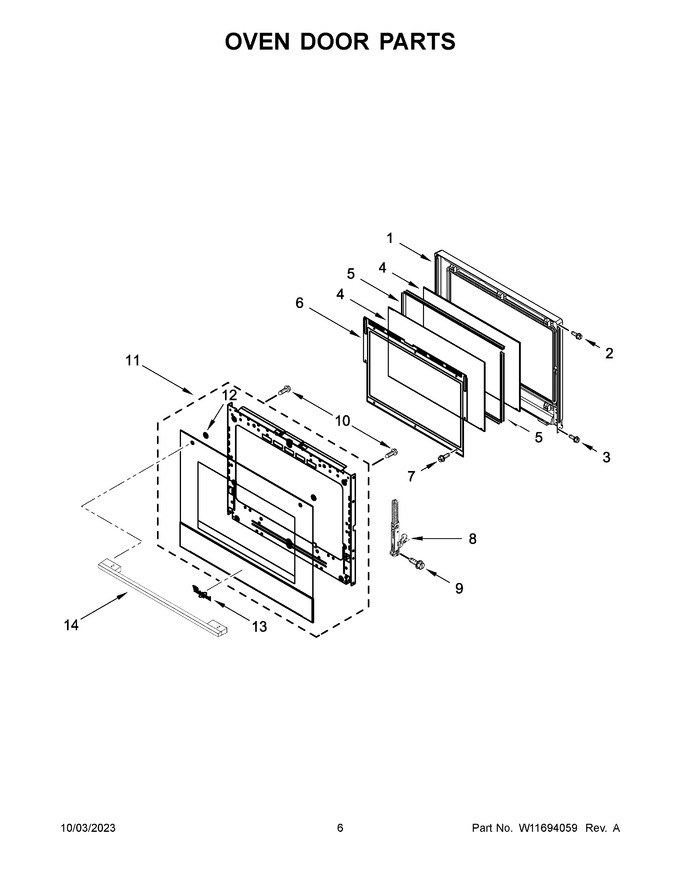

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11768649		Liner Assembly   (Replaces: W11302587)			Immediately	$ 303.81
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 14.77
4	WPW10618107		Glass, Inner   (Replaces: W10618107)				$ 247.71
5	W11736671		Spacer, Air Divider   (Replaces: W11302730)			Immediately	$ 72.09
6	W11598182		Retainer, Air Divider Glass   (Replaces: W11174095)			Immediately	$ 81.53
7	7101P42660		Screw		Appelez-nous	-
8	W11617222		Hinge, Door (left)   (Replaces: W11296054)				$ 90.03
9	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
10	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 14.75
11	W11654056		Door Assembly (stainless)   (Replaces: W11499218)			Immediately	$ 669.45
12	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
13	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
14	W11648759		Handle Assembly (stainless)   (Replaces: W11497438)		Appelez-nous	-
8A	W11617231		Hinge, Door (right)   (Replaces: W11296055)				$ 90.03

    View Diagram in Separate Window       Print Part List
