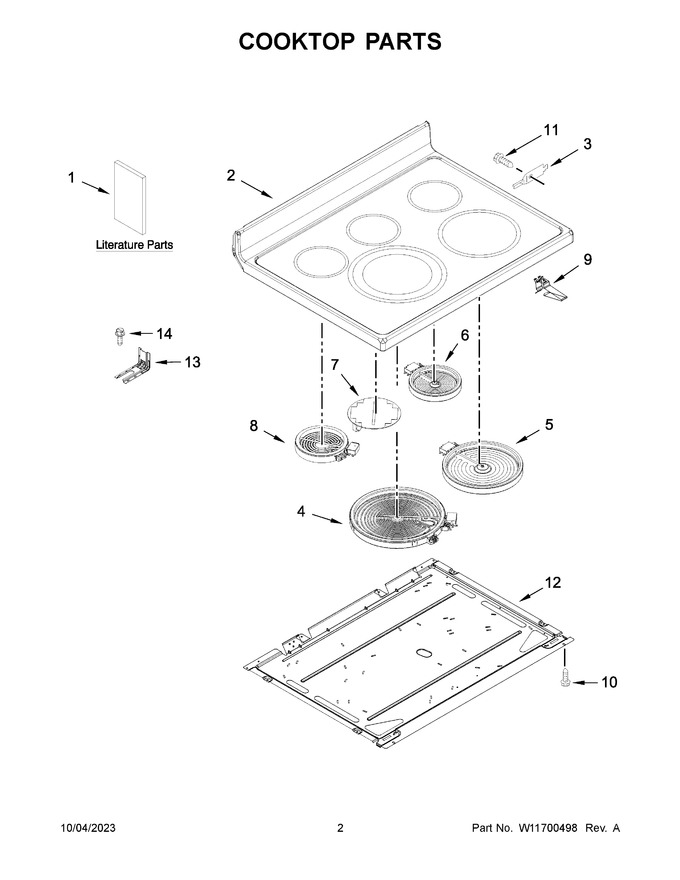

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11509613		Use And Care Guide		Appelez-nous	-
2	W10804319		Cooktop (stainless)   (Replaces: W10697352)			Immediately	$ 932.07
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 342.63
5	W11517959		Element (3000 And 1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11489748		Quick Start Guide		Appelez-nous	-
1B	W11393916		Tech Sheet (english)		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	W11454490		Harness, Main		Appelez-nous	-
NI	W11188424		Harness, Cooktop (left)		Appelez-nous	-
NI	W11212183		Harness, Sensor				$ 235.64
NI	W11134550		Harness, Cooktop (right)				$ 228.90
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
