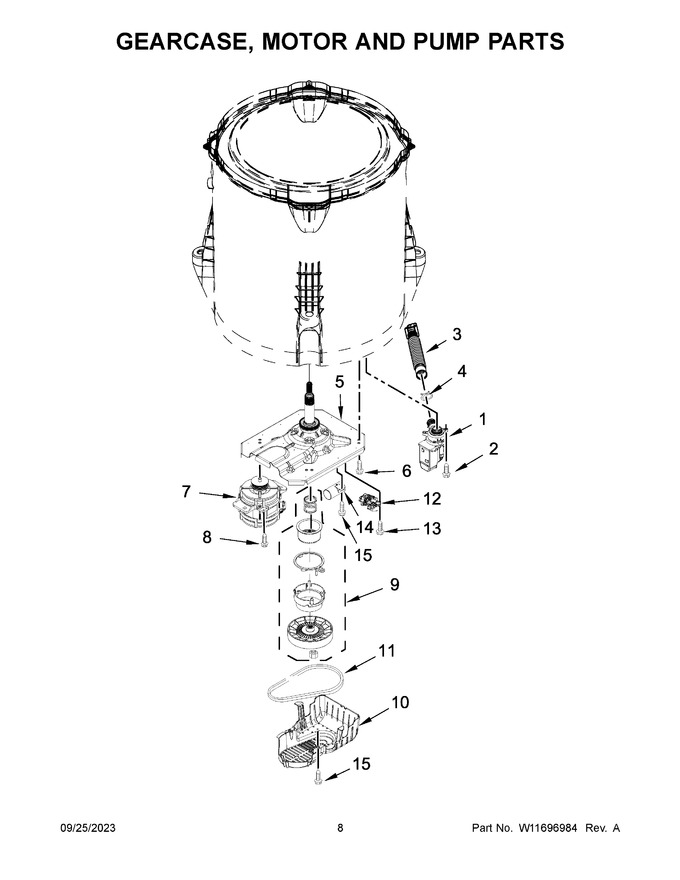

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10919003 | Pump Assembly, Drain (Replaces: W10775446) |
|
Immediately | $ 326.98 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 34.08 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10870912) |
|
Immediately | $ 299.80 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 7 | W11686050 | Motor, Drive (Replaces: W11222394) |
|
Immediately | $ 234.32 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.10 | |||||
| 9 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 | ||||
| 10 | W11409708 | Shield, Pulley Cover (Replaces: W11087188) |
|
Immediately | $ 43.63 | ||||
| 11 | W11239857 | Belt, Drive (Replaces: W10808317) |
|
Immediately | $ 52.43 | ||||
| 12 | W11481722 | Actuator, Shift (Replaces: W11398781) |
|
Immediately | $ 157.63 | ||||
| 13 | W11596033 | Screw (Replaces: 9741052) |
|
$ 13.55 | |||||
| 14 | W11428524 | Capacitor, Motor Run (Replaces: W11162561) |
|
Immediately | $ 92.05 | ||||
| 15 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 |
