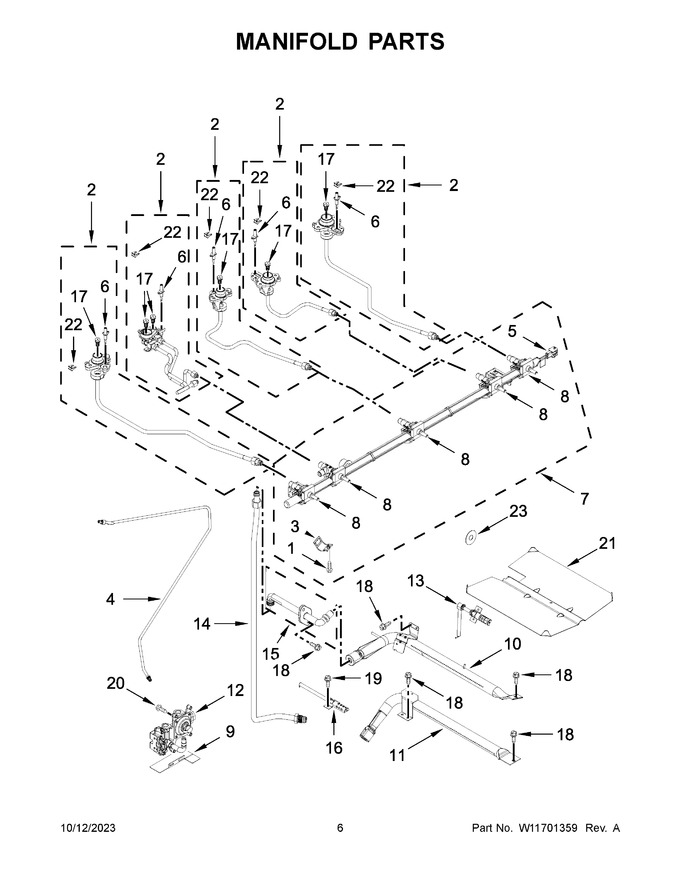

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | W11445309 | Orifice Assembly (left Front) (Replaces: W11186513) |
|
Immediately | $ 107.80 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 4 | W10432252 | Tube, Gas Supply |
|
$ 82.71 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 138.15 | ||||
| 6 | W11675301 | Electrode, Burner (left Front) (Replaces: W10898387) |
|
Immediately | $ 35.31 | ||||
| 7 | W11679667 | Manifold Assembly (Replaces: W11356345) |
|
$ 387.83 | |||||
| 8 | W11109973 | Valve, Gas Duel (left Front) (Replaces: W10432224) |
|
Immediately | $ 254.81 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 94.98 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 91.65 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 310.11 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 103.98 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 189.82 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 95.85 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 85.81 | ||||
| 17 | W11354862 | Orifice (1.45k) (left Front) |
|
- | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 21 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 22 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 23 | W10140571 | Seal, Switch Shaft |
|
$ 7.70 | |||||
| 17A | W10702888 | Orifice (18k) (left Front) |
|
$ 52.50 | |||||
| 17B | W11677633 | Orifice (5k) (right Rear) (Replaces: W10849719) |
|
$ 99.15 | |||||
| 17C | W10849717 | Orifice (15k) (right Front) |
|
Immediately | $ 93.46 | ||||
| 17D | W10849714 | Orifice (9.5k) (right Rear) |
|
$ 93.46 | |||||
| 17E | W10849715 | Orifice (8k) (center) |
|
- | |||||
| 2A | W11186509 | Orifice Assembly (left Rear) |
|
$ 99.65 | |||||
| 2B | W11186526 | Orifice Assembly (right Front) |
|
Immediately | $ 99.68 | ||||
| 2C | W11186522 | Orifice Assembly (right Rear) |
|
Immediately | $ 99.30 | ||||
| 2D | W11186518 | Orifice Assembly (center) |
|
$ 99.35 | |||||
| 6A | W11706253 | Electrode, Burner (left Rear) (Replaces: W11645247) |
|
- | |||||
| 6B | W11643126 | Electrode, Burner (right Front And Center) (Replaces: W10669524) |
|
Immediately | $ 38.01 | ||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 48.36 | |||||
| 8A | W10873134 | Valve, Gas (left Rear) (Replaces: W10831590) |
|
$ 272.65 | |||||
| 8B | W11241561 | Valve, Gas (right Front) (Replaces: W10566062) |
|
Immediately | $ 195.14 | ||||
| 8C | W11233561 | Valve, Gas (right Rear And Center) (Replaces: W10566057) |
|
Immediately | $ 264.72 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | W11436985 | Lp Conversion Kit (burners) (Replaces: W11397194) |
|
Immediately | $ 46.55 | ||||
| NI | W11087486 | Lp Conversion Kit (bake And Broil) (Replaces: W10566535) |
|
Immediately | $ 117.95 |
