01 - Cover Sheet

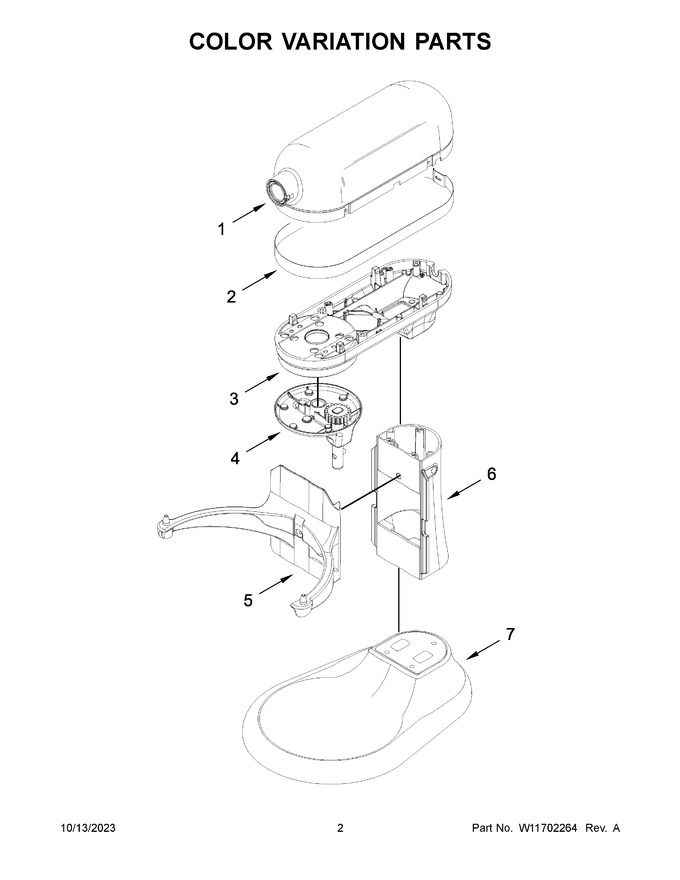

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit
04 - Base And Pedestal Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10403016 | Motor Housing (candy Apple Red) (Replaces: W10403016) |
|
$ 65.02 | |||||
| 2 | W11649200 | Trim Band (bright Aluminum) (Replaces: W11420352) |
|
- | |||||
| 3 | W11520129 | Lower Gearcase (candy Apple Red) |
|
- | |||||
| 4 | W11595416 | Planetary (silent Silver) |
|
$ 85.73 | |||||
| 5 | WPW10402998 | Bowl Support And Pins (candy Apple Red) (Replaces: W10402998) |
|
$ 98.26 | |||||
| 6 | WPW10402992 | Column And Pins (candy Apple Red) (Replaces: W10402992) |
|
$ 109.87 | |||||
| 7 | WPW10402986 | Base And Foot Assembly (candy Apple Red) (Replaces: W10402986) |
|
$ 111.33 |
