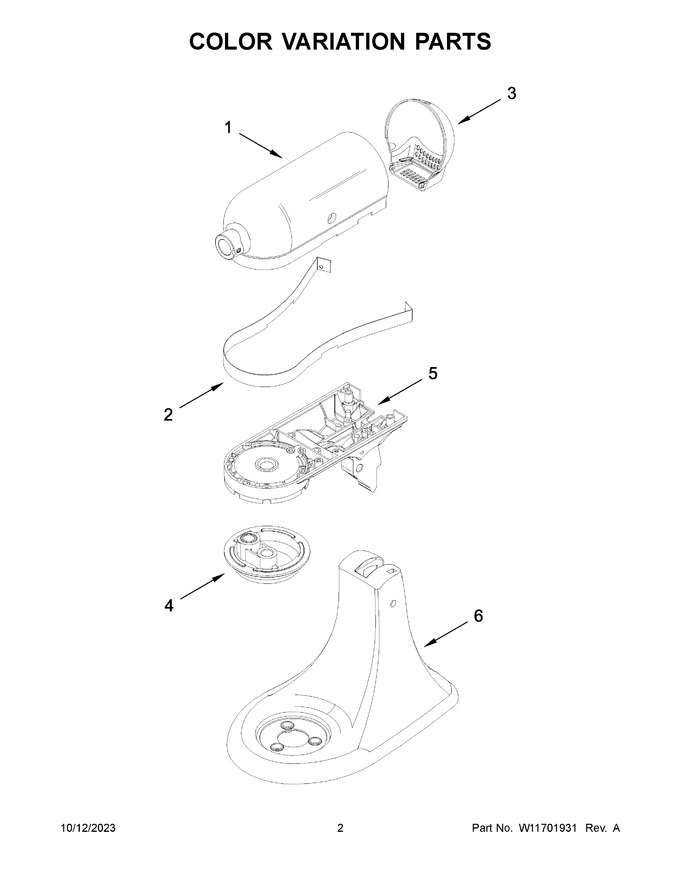

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11605627 | Motor Housing (almond Cream/creme) |
|
- | |||||
| 2 | W11171098 | Trim Band (black) (Replaces: W11100718) |
|
- | |||||
| 3 | 24025316 | End Cover (almond Cream/creme) |
|
- | |||||
| 4 | 24028618 | Planetary (almond Cream/creme) |
|
- | |||||
| 5 | 24035062 | Lower Gearcase (almond Cream/creme) |
|
- | |||||
| 6 | W11131691 | Pedestal, W/feet And Headlock (almond Cream/creme) (Replaces: 9705577) |
|
- | |||||
| 1A | W11601770 | Motor Housing (contour Silver) |
|
- | |||||
| 1B | W11601656 | Motor Housing (empire Red) |
|
- | |||||
| 1C | W11603687 | Motor Housing (pistachio) |
|
$ 100.30 | |||||
| 3A | W10350456 | End Cover (contour Silver) |
|
$ 43.04 | |||||
| 3B | 24025322 | End Cover (empire Red) |
|
- | |||||
| 3C | 9706841 | End Cover (pistachio) |
|
- | |||||
| 4A | W10350465 | Planetary (contour Silver) |
|
- | |||||
| 4B | 24028623 | Planetary (empire Red) |
|
- | |||||
| 4C | 9706839 | Planetary (pistachio) |
|
- | |||||
| 5A | W10350459 | Lower Gearcase (contour Silver) |
|
- | |||||
| 5B | 24035091 | Lower Gearcase (empire Red) |
|
- | |||||
| 5C | 9706832 | Lower Gearcase (pistachio) |
|
$ 66.91 | |||||
| 6A | W10482478 | Pedestal, W/feet And Headlock (contour Silver) |
|
- | |||||
| 6B | 3184280 | Pedestal, W/feet And Headlock (empire Red) |
|
- | |||||
| 6C | 9709637 | Pedestal, W/feet And Headlock (pistachio) |
|
- |
