01 - Cover Sheet
02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

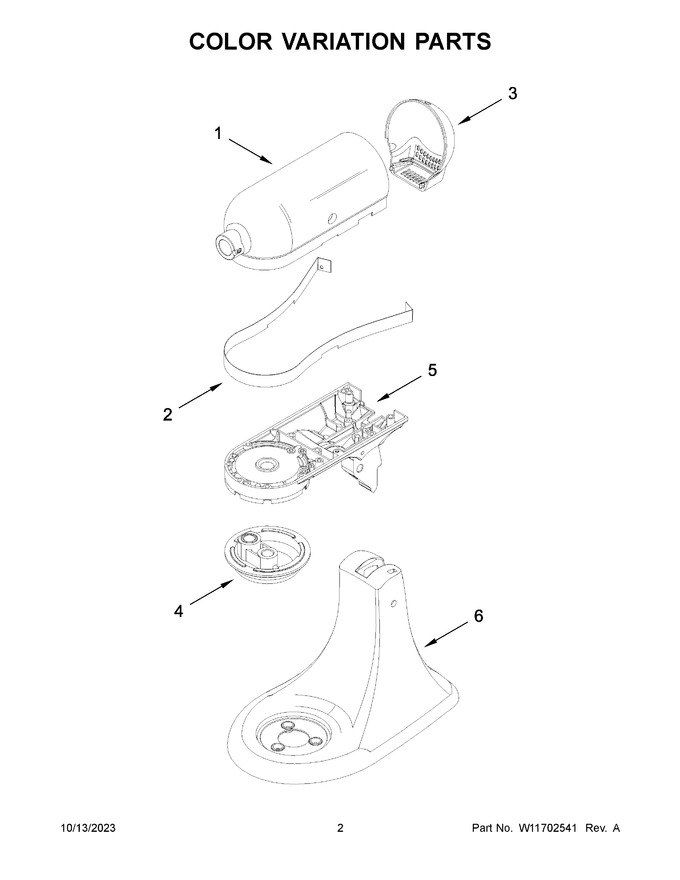

| 1 | W11601712 | Motor Housing (mineral Water Blue) |
|
- | |||||
| 2 | W11562449 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W11444606 | End Cover (mineral Water Blue) |
|
- | |||||
| 4 | W11444675 | Planetary (mineral Water Blue) |
|
- | |||||
| 5 | W11444671 | Lower Gearcase (mineral Water Blue) |
|
- | |||||
| 6 | W11521031 | Pedestal, W/feet And Headlock (mineral Water Blue) |
|
- |
