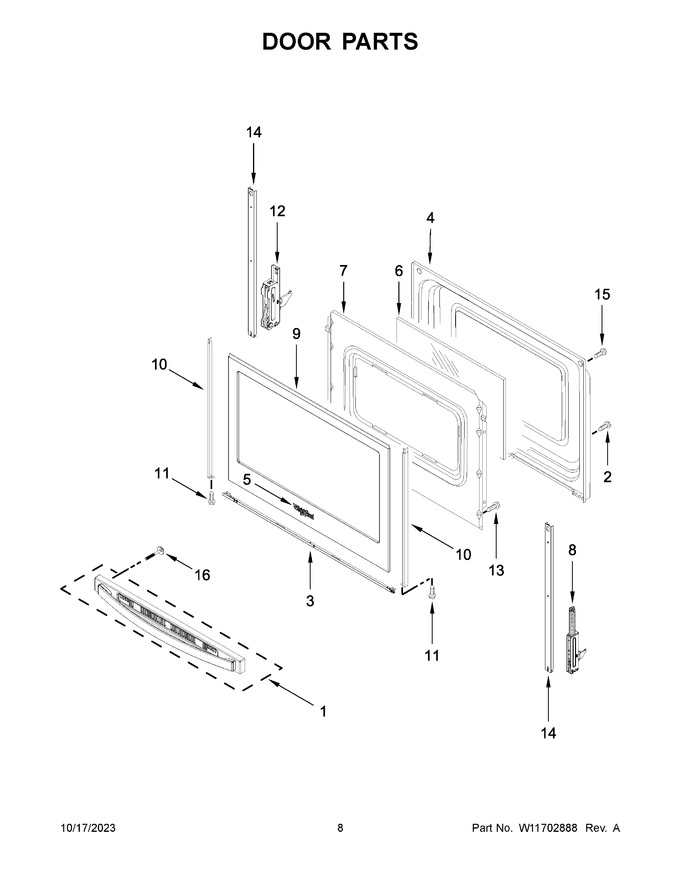

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553213		Handle And Vent Assembly (black)   (Replaces: W11242949)			Immediately	$ 233.36
2	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
3	W11569689		Trim, Lower (black)   (Replaces: W11444043)			Immediately	$ 60.08
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
6	W11399628		Glass, Inner   (Replaces: W11367326)				$ 171.68
7	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 188.29
8	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 52.34
9	W11702167		Glass, Outer Door (black)   (Replaces: W10884159)			Immediately	$ 184.73
10	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
16	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
10A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 72.96
