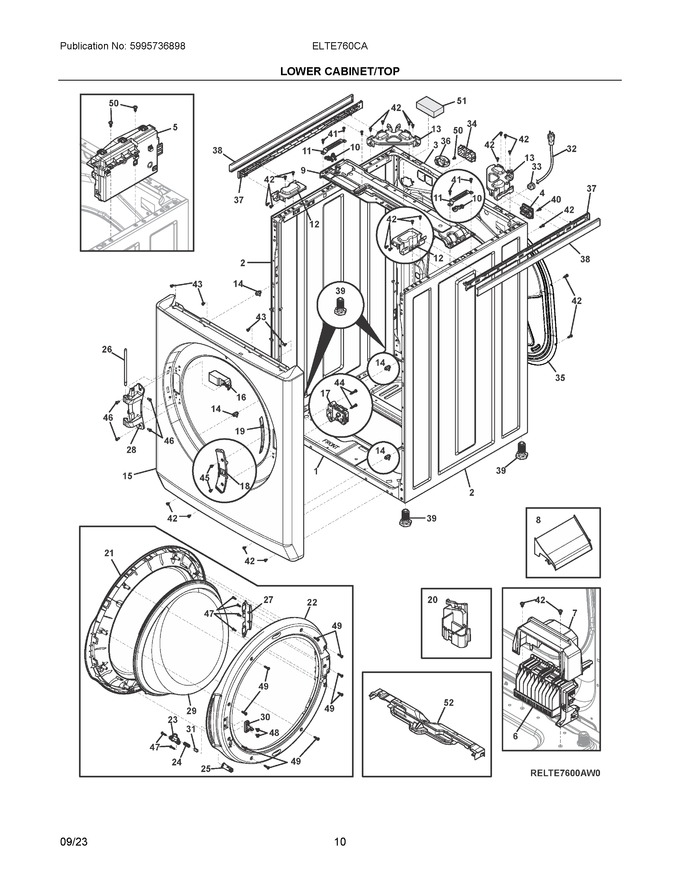

04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134646007		Base, Washed			Immediately	$ 264.27
2	5304505139		Side Panel, Washer, White   (Replaces: 5304535902)			Immediately	$ 269.03
3	5304535934		Panel, Main Back, Washer		Appelez-nous	-
4	5304535991		Bracket & Cover, Assembly, Daas Connector		Appelez-nous	-
5	5304536154		Main Board, Assembly, Washer, W/housing			Immediately	$ 163.36
6	5304531961		Motor Control, Assembly			Immediately	$ 183.77
7	5304505174		Cover, Motor Control			Immediately	$ 19.58
8	5304514807		Deflector, Water		Appelez-nous	-
9	5304535989		Bracket, Tub Suspension		Appelez-nous	-
10	5304505221		Protector, Tub Bracket, Spring Hook, (2)				$ 17.67
11	5304505101		Bracket, Spring, (2)				$ 14.46
12	5304535979		Marriage Bracket, Front Corner		Appelez-nous	-
13	5304535980		Marriage Bracket, Rear Corner		Appelez-nous	-
14	5304505102		Clip, Front Panel, (4)			Immediately	$ 15.27
15	5304535963		Front Panel, Washer, White			Immediately	$ 216.08
16	5304505104		Protection, Door Lock			Immediately	$ 16.55
17	5304514774		Door Lock, Assembly, W/switch			Immediately	$ 127.04
18	5304505103		Cover, Door Lock, Front Flange			Immediately	$ 262.50
19	5304505144		Cover, Hinge Holes				$ 4.66
20	5304505311		Support, Connector				$ 12.85
21	5304529890		Frame Assembly, Door, External, W/outer Lens				$ 168.54
22	5304537077		Frame, Door, Inner   (Replaces: 5304529741)			Immediately	$ 142.34
23	5304532026		Button, Door Vent		Appelez-nous	-
24	5304505329		Spring, Door Vent				$ 17.67
25	5304505328		Cap, Door Vent				$ 17.67
26	5304529871		Pin, Hinge			Immediately	$ 33.74
27	5304529750		Bracket, Hinge			Immediately	$ 21.69
28	5304529754		Hinge Assembly, Door, W/bushings			Immediately	$ 104.42
29	5304529631		Glass, Door Window			Immediately	$ 122.67
30	5304505088		Latch, Door			Immediately	$ 39.32
31	5304505381		Magnet, Door Vent				$ 22.49
32	5304522525		Power Cord, Electric Svce			Immediately	$ 69.03
33	5303209428		Bushing, Strain Relief				$ 18.90
34	5304514806		Grommet, Dispenser, Back Panel				$ 9.64
35	134646206		Panel, Service, Back				$ 58.70
36	134641100		Bracket, Drain Hose Mtg, Rear				$ 22.05
37	5304535983		Bracket, Side Trim, White		Appelez-nous	-
38	5304536051		Cover, Side Trim, White		Appelez-nous	-
39	5304522555		Leveling Leg, Screw, Plastic			Immediately	$ 29.32
40	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
41	137087400		Screw, #10-16 X .625		Appelez-nous	-
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
43	131168202		Screw, #10-16 X .375, W/sealing Wshr		Appelez-nous	-
44	137262100		Screw, Pan Head Quad, 10-14 X 1.00			Immediately	$ 11.03
45	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
46	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 18.26
47	3205150		Screw, 8-12b X 0.750				$ 3.94
48	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 11.81
49	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 12.60
50	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
51	131931202		Dampener, Vibration, Foam				$ 19.28
52	5304535981		Cover, Rear Connection				$ 127.89
NI	137086900		Bolt, Hwh, 9/32-15 X 3.75		Appelez-nous	-
NI	316008401		Washer, Flat, 1/4 Inch, Steel, (2)   (Replaces: 134477300)				$ 12.60
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 14.18
NI	5308014215		Screw, Sheet Metal, 6-20 X 0.375, (2)   (Replaces: 134477400)				$ 2.53
NI	137086901		Bolt, Hwh, 9/32-15 X 4.2		Appelez-nous	-
NI	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
NI	134591400		Plug, Hole, (7), Rear Cabinet				$ 23.63
NIA	5304522524		Harness, Wiring, Door Lock Dbl				$ 66.61
NIA	5304510114		Cable, Grounding, To Cabinet, Main Board				$ 19.76
NIA	134407900		Dampener, Vibration				$ 18.90
