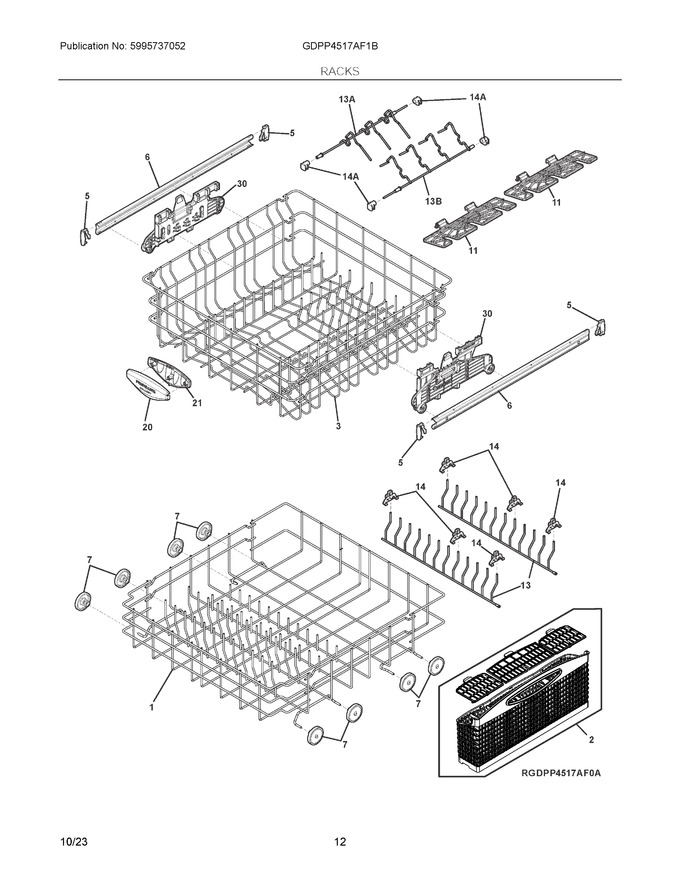

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304532969 | Rack Assembly, Metalic, Lower |
|
Immediately | $ 176.93 | ||||
| 2 | 5304535382 | Basket Assembly, Silverware, Earl Gray, W/3 Lids (Replaces: 5304532213) |
|
Immediately | $ 28.25 | ||||
| 3 | 5304532968 | Rack Assembly, Metalic, Upper |
|
- | |||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.92 | ||||
| 6 | 5304532271 | Slide, Rack, Upper |
|
$ 56.02 | |||||
| 7 | 5304532229 | Wheel & Bushing Assy, Midnight Ink, Lower Rack |
|
Immediately | $ 14.17 | ||||
| 11 | 5304532945 | Cup Shelf, Stemware, Midnight |
|
Immediately | $ 8.24 | ||||
| 13 | 5304532951 | Fence, Fold Down, Midnight |
|
$ 30.40 | |||||
| 14 | 5304532952 | Bracket, Fence, Midnight, Fold Down |
|
Immediately | $ 4.83 | ||||
| 20 | 5304532977 | Handle, Rack, Midnight, Front |
|
- | |||||
| 21 | 5304532947 | Handle, Rack, Midnight, Rear |
|
- | |||||
| 30 | 5304532268 | Rack Adjustment, Assembly, Earl Gray, Rh |
|
$ 29.83 | |||||
| 13A | 5304532949 | Multifence, 3 Wire, Midnight |
|
$ 21.42 | |||||
| 13B | 5304532950 | Multifence, 4 Wire, Midnight |
|
Immediately | $ 21.95 | ||||
| 14A | 5304532946 | Bracket, Multifence, Midnight |
|
$ 3.89 | |||||
| NIA | 5304532269 | Rack Adjustment, Assembly, Earl Gray, Lh |
|
$ 29.83 |
