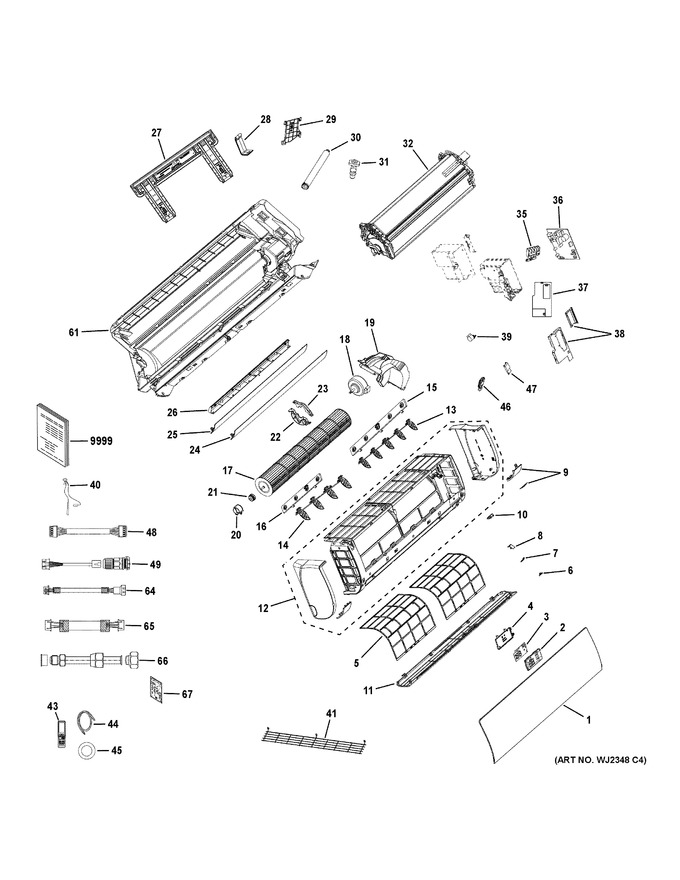

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X29560 | Access Panel |
|
- | |||||
| 2 | WJ76X26408 | Display Board Box |
|
- | |||||
| 3 | WJ26X26460 | Display Panel |
|
- | |||||
| 4 | WJ76X27413 | Display Box Cover |
|
- | |||||
| 5 | WJ85X26432 | Air Filter |
|
- | |||||
| 6 | WJ01X26403 | Panel Latch |
|
- | |||||
| 7 | WJ01X26404 | Pin |
|
- | |||||
| 8 | WJ76X26411 | Screw Cover |
|
- | |||||
| 9 | WJ71X29750 | Right End Panel |
|
- | |||||
| 10 | WJ76X26407 | Power Switch Box |
|
- | |||||
| 11 | WJ71X26412 | Bottom Acess Panel |
|
- | |||||
| 12 | WJ71X29749 | Casing Assembly |
|
- | |||||
| 13 | WJ71X29744 | Vertical Louvre |
|
- | |||||
| 14 | WJ71X29743 | Vertical Louvre |
|
- | |||||
| 15 | WJ71X29740 | 5 Hole Louver Socket |
|
- | |||||
| 16 | WJ71X29739 | 4 Hole Louver Socket |
|
- | |||||
| 17 | WJ73X26396 | Cross Flow Fan |
|
- | |||||
| 18 | WJ94X23249 | Indoor Fan Motor |
|
$ 197.06 | |||||
| 19 | WJ76X26494 | Indoor Motor Cover |
|
- | |||||
| 20 | WJ73X23050 | Cross Flow Fan Bearing Cover |
|
- | |||||
| 21 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 22 | WJ65X26400 | Motor Bracket Bottom |
|
- | |||||
| 23 | WJ65X25953 | Motor Bracket Top |
|
- | |||||
| 24 | WJ71X26414 | Horizontal Louver Up |
|
- | |||||
| 25 | WJ71X26415 | Horizontal Louver Down |
|
- | |||||
| 26 | WJ76X29800 | Wire Cover |
|
- | |||||
| 27 | WJ65X25594 | Mounting Bracket |
|
- | |||||
| 28 | WJ65X29559 | Drain Pipe Bracket |
|
- | |||||
| 29 | WJ76X29799 | Pipe Chanel Cover |
|
- | |||||
| 30 | WJ53X23256 | Drain Pipe |
|
- | |||||
| 31 | WJ01X26401 | Drain Plug |
|
- | |||||
| 32 | WJ87X29748 | Evaporator Assy |
|
- | |||||
| 35 | WJ26X23043 | Terminal Block |
|
- | |||||
| 36 | WJ26X29153 | Indoor Pcb |
|
- | |||||
| 37 | WJ76X28918 | Board Cover |
|
- | |||||
| 38 | WJ76X29557 | Metal Cover |
|
- | |||||
| 39 | WJ94X26439 | Horizontal Louver Motor |
|
- | |||||
| 40 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 41 | WJ71X29796 | Outlet Guard |
|
- | |||||
| 43 | WJ26X29525 | Remote |
|
- | |||||
| 44 | WJ53X29553 | Drain Hose |
|
- | |||||
| 45 | WJ53X28913 | Guard Ring |
|
- | |||||
| 46 | WJ26X27137 | Wifi-module |
|
- | |||||
| 47 | WJ76X26434 | Wifi Module Cover |
|
- | |||||
| 48 | WJ27X27115 | Rj45 |
|
- | |||||
| 49 | WJ35X27134 | Wifi Wiring Harness |
|
- | |||||
| 50 | WJ35X33413 | Wire Harness Pcb Display |
|
- | |||||
| 61 | WJ71X31822 | Vertical Louvre Assembly |
|
- | |||||
| 64 | WJ35X27135 | Wk-b Wiring Harness |
|
- | |||||
| 65 | WJ35X27136 | Wk-b Wiring Harness |
|
- | |||||
| 66 | WJ01X27116 | 1/2" X 3/8" Adapter |
|
- | |||||
| 67 | WJ26X26464 | Wired Controle Adaptor Board |
|
- | |||||
| 9999 | 31-5000564 | Pm Install Instructions |
|
- |
