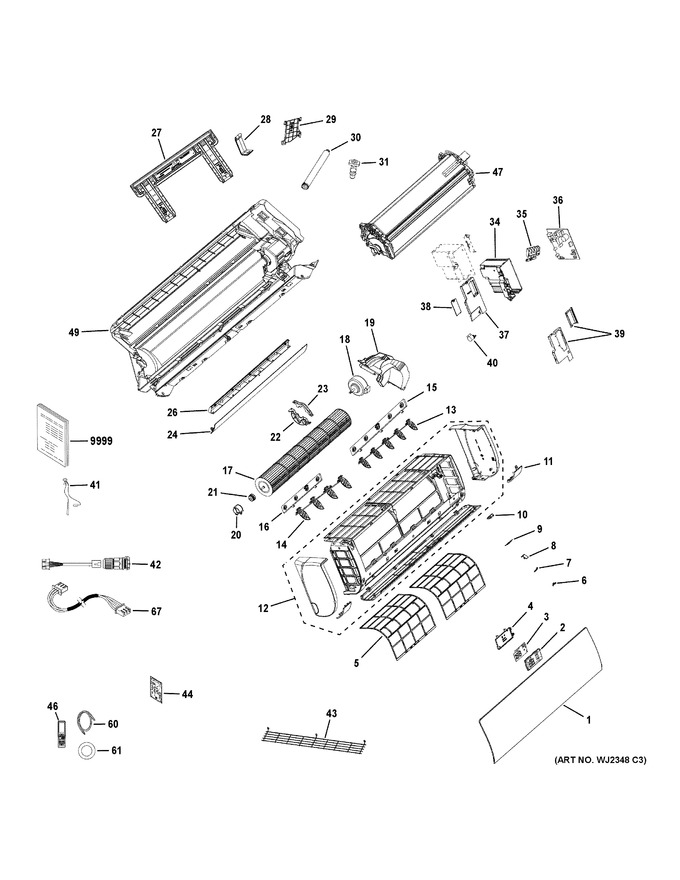

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ76X28914 | Front Cover |
|
- | |||||
| 2 | WJ76X27413 | Display Box Cover |
|
- | |||||
| 3 | WJ26X26460 | Display Panel |
|
- | |||||
| 4 | WJ76X26408 | Display Board Box |
|
- | |||||
| 5 | WJ85X27908 | Air Filter |
|
- | |||||
| 6 | WJ01X26403 | Panel Latch |
|
- | |||||
| 7 | WJ01X26404 | Pin |
|
- | |||||
| 8 | WJ76X27905 | Screw Cover |
|
- | |||||
| 9 | WJ26X26405 | Power Switch |
|
- | |||||
| 10 | WJ76X26407 | Power Switch Box |
|
- | |||||
| 11 | WJ76X27917 | Cover Right |
|
- | |||||
| 12 | WJ76X28919 | Casing Assembly |
|
- | |||||
| 13 | WJ71X27906 | Vertical Louver Right |
|
- | |||||
| 14 | WJ71X27907 | Vertical Louver Left |
|
- | |||||
| 15 | WJ65X27911 | Louver Socket Right |
|
- | |||||
| 16 | WJ65X27912 | Louver Socket Left |
|
- | |||||
| 17 | WJ73X27901 | Cross Flow Fan |
|
$ 60.77 | |||||
| 18 | WJ94X23035 | Indoor Motor |
|
$ 146.12 | |||||
| 19 | WJ76X27913 | Indoor Motor Cover |
|
- | |||||
| 20 | WJ73X28013 | Bearing Cover |
|
- | |||||
| 21 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 22 | WJ65X26400 | Motor Bracket Bottom |
|
- | |||||
| 23 | WJ65X25953 | Motor Bracket Top |
|
- | |||||
| 24 | WJ71X27904 | Horizontal Louver |
|
- | |||||
| 26 | WJ76X28915 | Wire Cover |
|
- | |||||
| 27 | WJ65X27875 | Mounting Bracket |
|
- | |||||
| 28 | WJ65X27896 | Drain Pipe Bracket |
|
- | |||||
| 29 | WJ76X29674 | Pipe Chanel Cover |
|
- | |||||
| 30 | WJ53X27918 | Drain Pipe |
|
- | |||||
| 31 | WJ01X26401 | Drain Plug |
|
- | |||||
| 34 | WJ76X28175 | Electrical Box |
|
- | |||||
| 35 | WJ35X29528 | Terminal Block |
|
- | |||||
| 36 | WJ26X29034 | Indoor Pcb |
|
- | |||||
| 37 | WJ76X27898 | Wifi Cover |
|
- | |||||
| 38 | WJ76X26434 | Wifi Module Cover |
|
- | |||||
| 39 | WJ76X27876 | Control Box Cover |
|
- | |||||
| 40 | WJ26X27923 | Indoor Thermistor |
|
- | |||||
| 41 | WJ26X23042 | Temperature Sensor Assembly |
|
$ 19.55 | |||||
| 42 | WJ27X27115 | Rj45 |
|
- | |||||
| 43 | WJ71X28026 | Outlet Guard |
|
- | |||||
| 44 | WJ26X27137 | Wifi-module |
|
- | |||||
| 46 | WJ26X29525 | Remote |
|
- | |||||
| 47 | WJ87X31831 | Evaporator Coil |
|
- | |||||
| 49 | WJ71X31821 | Vertical Louvre Assembly |
|
- | |||||
| 60 | WJ53X29553 | Drain Hose |
|
- | |||||
| 61 | WJ53X28913 | Guard Ring |
|
- | |||||
| 67 | WJ26X26464 | Wired Controle Adaptor Board |
|
- | |||||
| 9999 | 31-5000564 | Pm Install Instructions |
|
- |
