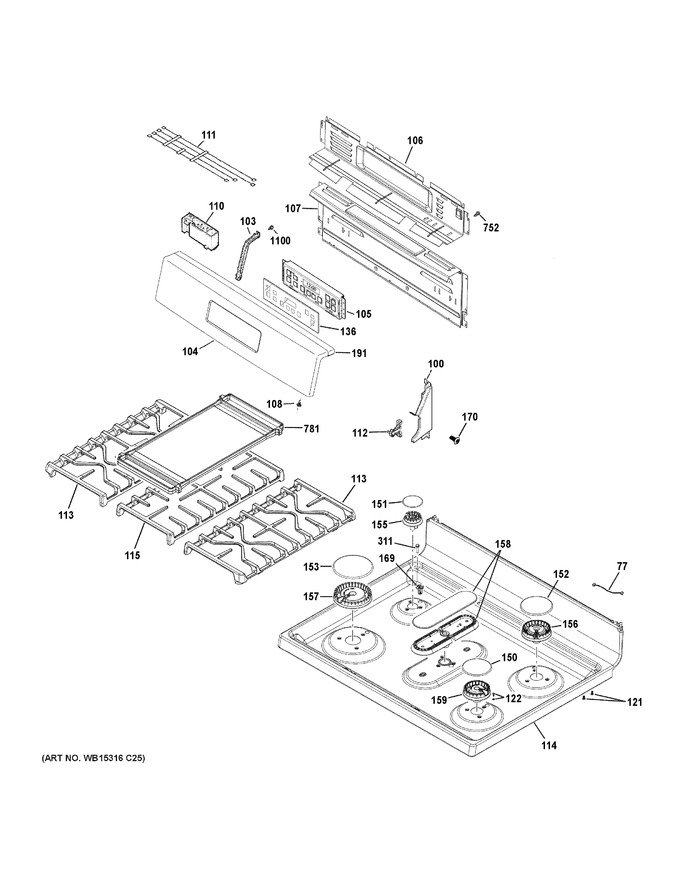

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 77 | WB18X27594 | Harness Ground |
|
- | |||||
| 100 | WB07X24733 | Black End Support Rt |
|
- | |||||
| 100 | WB07X24732 | Black End Support Lf |
|
- | |||||
| 103 | WB02X24845 | Bracket Control |
|
- | |||||
| 104 | WB36X25218 | Backguard Range |
|
- | |||||
| 105 | WB27X44726 | Control Oven To9 (gas) |
|
- | |||||
| 106 | WB34X24851 | Cover Back Upper |
|
- | |||||
| 107 | WB34X24746 | Cover Back Lower |
|
- | |||||
| 108 | WS01A01408 | Screw (blk) (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 110 | WB13X24741 | Ignition Module |
|
- | |||||
| 111 | WB18X31472 | Electrodes & Harness H.v. |
|
- | |||||
| 112 | WB14K10003 | Hinge Range Top |
|
- | |||||
| 113 | WB31X24736 | Grate Asm |
|
- | |||||
| 114 | WB62X24778 | Rangetop & Brkt Asm |
|
- | |||||
| 115 | WS01L13840 | Central Grate (Replaces: WB31X24737) |
|
Immediately | $ 110.54 | ||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 122 | WB01X24735 | Ckt Screw |
|
- | |||||
| 136 | WB07X26702 | Overlay T09 |
|
- | |||||
| 150 | WS01F02536 | Asm Burner Cap (9500) (Replaces: WB29K10023) |
|
Immediately | $ 17.47 | ||||
| 151 | WB16X28654 | Asm. Cap, Burner Small V2 |
|
$ 28.45 | |||||
| 152 | WS01F03894 | Asm Burner Cap (12000) (Replaces: WB29K10024) |
|
Immediately | $ 23.82 | ||||
| 153 | WS01F02544 | Cap Burner Xl (Replaces: WB28K10222) |
|
Immediately | $ 18.43 | ||||
| 155 | WB16X24721 | Burner, Small V2 |
|
- | |||||
| 156 | WB16X24723 | Burner, Large V2 |
|
- | |||||
| 157 | WB16X24722 | Burner, Xl V2 |
|
- | |||||
| 158 | WS01F02148 | Oval Burner Asm (Replaces: WB16K10076) |
|
Immediately | $ 75.70 | ||||
| 159 | WB16X24724 | Burner, Medium V2 |
|
- | |||||
| 169 | WB02X24976 | Clip, Igniter V2 |
|
- | |||||
| 170 | WB1X593 | Screw - Door Asm (4 Per) |
|
- | |||||
| 191 | WB56X26681 | Top Complement Backguard |
|
- | |||||
| 311 | WB02X24790 | Bumper |
|
- | |||||
| 752 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- | |||||
| 781 | WS01F11669 | Griddle Aluminum (Replaces: WB31X24738) |
|
Immediately | $ 112.81 | ||||
| 1100 | WB01T10016 | Screw 8-18 Ab Hxw 5/8 S |
|
- |
