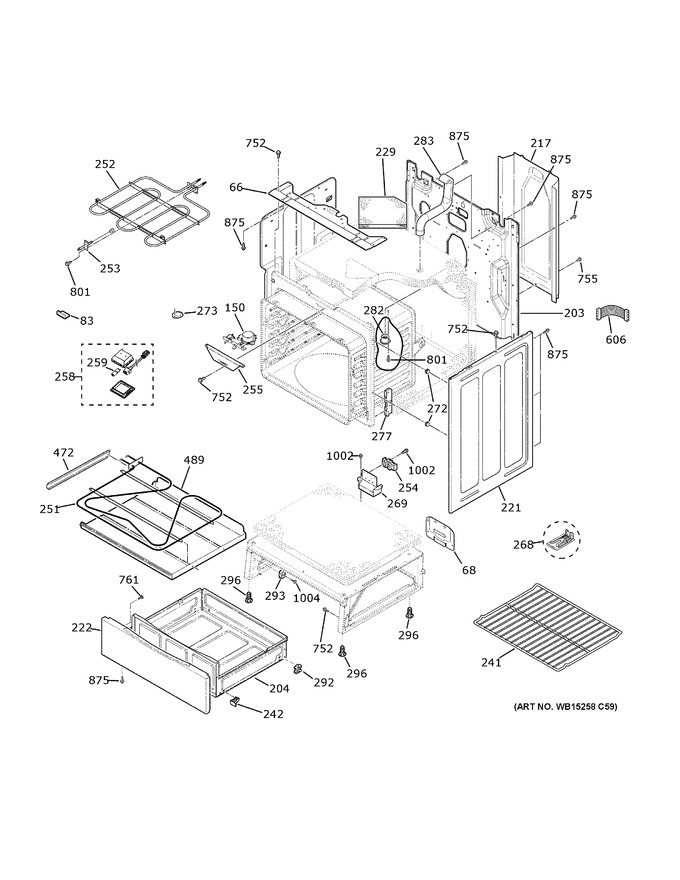

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Body Parts
Control Panel
Convection Fan
Cooktop
Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 66 | WB34X26630 | Rangetop Enclosure |
|
- | |||||
| 68 | WB02X21423 | Plate Cover (bk) |
|
- | |||||
| 83 | WB02T10118 | Clip Seam Oven Body |
|
- | |||||
| 150 | WB10X25007 | Latch Asm |
|
- | |||||
| 203 | WB34X32059 | Main Back Cover |
|
- | |||||
| 204 | WB63X29070 | Drawer Body Asm |
|
- | |||||
| 217 | WB34X29563 | Wire Cover Back |
|
- | |||||
| 221 | WB63X28679 | Side Panel Dg |
|
- | |||||
| 222 | WB56X43438 | Drawer Panel-slate |
|
- | |||||
| 229 | WB35T10017 | Vent Tube Insulation |
|
- | |||||
| 241 | WB48T10063 | Rack Oven |
|
- | |||||
| 242 | WB02X29072 | Drawer Wedge |
|
- | |||||
| 251 | WG02A04510 | Unit Asm (Replaces: WB44T10104) |
|
Immediately | $ 114.58 | ||||
| 252 | WB44X29151 | Broil Element Asm |
|
- | |||||
| 253 | WS01F02431 | Sensor Asm (Replaces: WB21X22134) |
|
Immediately | $ 27.18 | ||||
| 254 | WB17X38438 | Block Terminal Asm |
|
- | |||||
| 255 | WB07X21459 | Trim Latch |
|
- | |||||
| 258 | WB25X42688 | Halogen Lamp Assembly |
|
- | |||||
| 259 | WB25T10102 | Lamp Halogen Bulb G9 |
|
- | |||||
| 268 | WB02T10578 | Anti-tip Bracket Asm |
|
- | |||||
| 269 | WB34X29565 | Terminal Block Mount |
|
- | |||||
| 272 | WG02L01603 | Side Panel Support (Replaces: WB02T10034) |
|
$ 4.20 | |||||
| 273 | WB2K5365 | Cover |
|
- | |||||
| 277 | WB10X29566 | Hinge Receiver |
|
- | |||||
| 282 | WB38X33648 | Vent Tube |
|
- | |||||
| 283 | WB34X29573 | Vent Tube |
|
- | |||||
| 292 | WB02X33180 | Rear Support |
|
- | |||||
| 293 | WG02L01594 | Drawer Support Frt (Replaces: WB48T10013) |
|
$ 5.72 | |||||
| 296 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 5.72 | ||||
| 472 | WB49T10007 | Side Reflector |
|
- | |||||
| 489 | WB02T10509 | Reflector Pan Bake Element |
|
- | |||||
| 606 | WB18X32661 | Hidden Bake Harness |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 755 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 761 | WB1X5904 | Scr 8-18 Ba |
|
- | |||||
| 801 | WB01M10002 | Screw |
|
- | |||||
| 875 | WG04A00781 | Screw (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 1002 | WB01T10017 | Screw 8-18 Ab Ihw 3/8 S Ns |
|
- | |||||
| 1004 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- |
