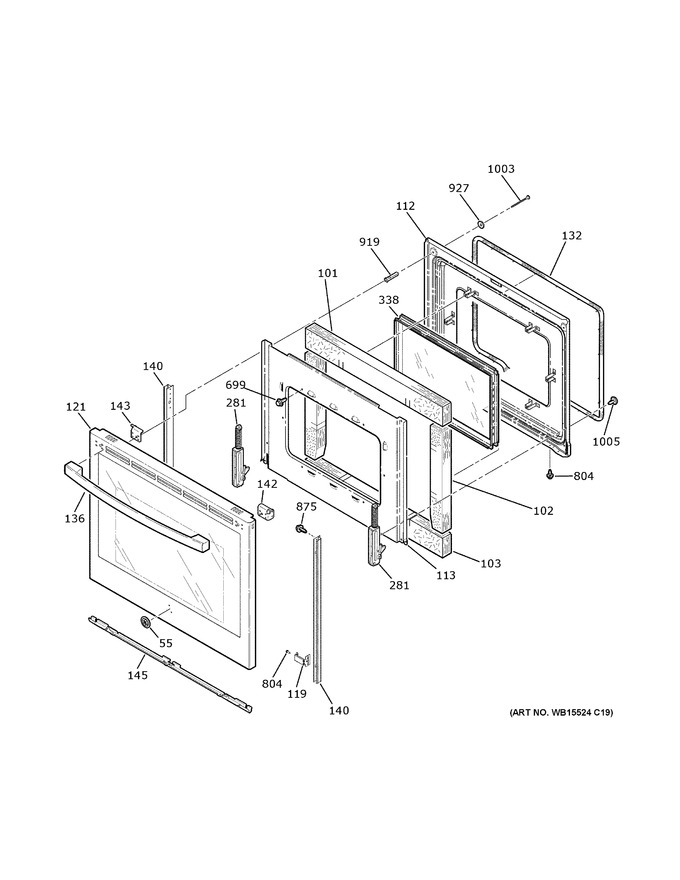

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 55 | WB02X29479 | Flat Badge Asm |
|
- | |||||
| 101 | WB35T10134 | Insulation Door |
|
- | |||||
| 102 | WB35T10135 | Insulation Door |
|
- | |||||
| 103 | WB35T10255 | Insulation Door |
|
- | |||||
| 112 | WB55T10203 | Liner Oven Door Asm (bk) |
|
- | |||||
| 113 | WB56T10178 | Retainer Ovn Dr Insln |
|
- | |||||
| 119 | WB02X28578 | Door Glass Bracket |
|
- | |||||
| 121 | WB56X43412 | Outer Door-slate |
|
- | |||||
| 132 | WB35X30048 | Oven Door Gasket |
|
- | |||||
| 136 | WB15X42631 | Handle & Endcap Asm (ss) |
|
- | |||||
| 140 | WB56T10287 | Frame Door Side (bk) |
|
- | |||||
| 142 | WB34X42670 | Door Handle Bracket Lh |
|
- | |||||
| 143 | WB34X42027 | Bracket Door Trim Rh |
|
- | |||||
| 145 | WB07X42968 | Door Gap Filler |
|
- | |||||
| 281 | WB10T10070 | Hinge Door |
|
- | |||||
| 338 | WB56X22160 | Window Pack Asm |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 804 | WB01T10046 | Wz4x245d |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 919 | WB02X38986 | Spacer |
|
- | |||||
| 927 | WB1X119 | Contoured Washer |
|
- | |||||
| 1003 | WB02X24268 | Scr 10-32 Ca Trt15 3.06 |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 |
