SELECT A DIAGRAM

Freezer Door


Freezer Section


Freezer Shelves


Fresh Food Door


Fresh Food Section


Fresh Food Shelves


Ice Maker & Dispenser


Lokring Connectors


Machine Compartment

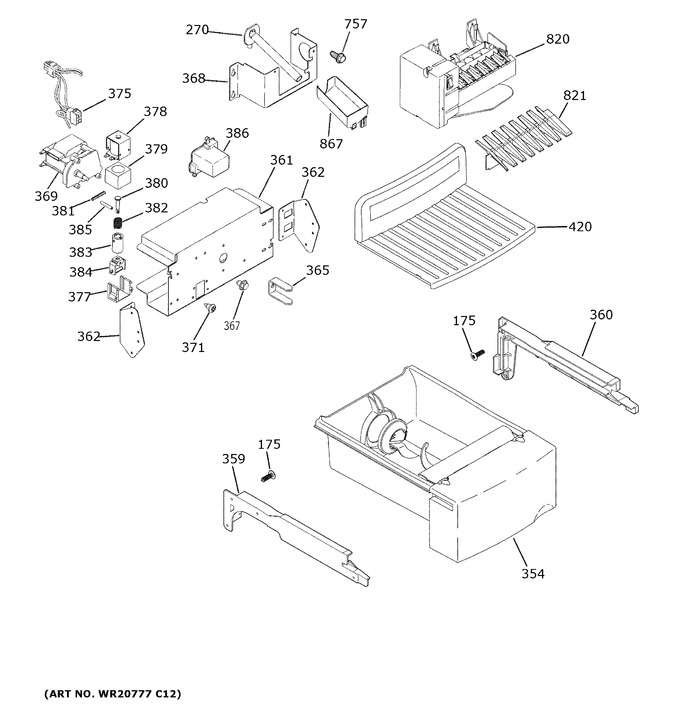

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10652		Scr 8-18 Ab Ihw 5/8 S		Appelez-nous	-
270	WG03F00304		Grommet And Tube Asm   (Replaces: WR17X11168)				$ 21.44
354	WR17X12938		Bucket & Auger Asm		Appelez-nous	-
359	WR72X10169		Glide Bracket Lh		Appelez-nous	-
360	WR01A00218		Glide Bracket Rh   (Replaces: WR72X10170)				$ 19.53
361	WR17X24304		Cover Motor & Solenoid		Appelez-nous	-
362	WR02X12057		Bracket Angle		Appelez-nous	-
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 27.16
368	WR02X12061		Bracket Im Mounting		Appelez-nous	-
369	WR60X39468		Auger Motor		Appelez-nous	-
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X39466		Auger Motor Harness		Appelez-nous	-
377	WR2X7309		Saddle Solenoid		Appelez-nous	-
378	WR62X39469		Crusher Solenoid		Appelez-nous	-
379	WR01F00328		Shroud Solenoid   (Replaces: WR17X1063)				$ 136.63
380	WR01F00328		Plunger Solenoid   (Replaces: WR17X1064)				$ 136.63
381	WR01F00328		Pin Spiral   (Replaces: WR2X4257)				$ 136.63
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X12742)				$ 136.63
384	WG04F00407		Stirrup Solenoid Display   (Replaces: WR17X1066)				$ 85.87
385	WR02X20425		Spiral Pin		Appelez-nous	-
386	WR02X11295		Boot Auger Motor		Appelez-nous	-
420	WR71X10647		Shelf Chiller		Appelez-nous	-
757	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
820	WR30X39277		Icemaker		Appelez-nous	-
821	WG03F03761		Stripper Im   (Replaces: WR29X10083)				$ 58.80
867	WR29X10109		Cup Fill Im		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
