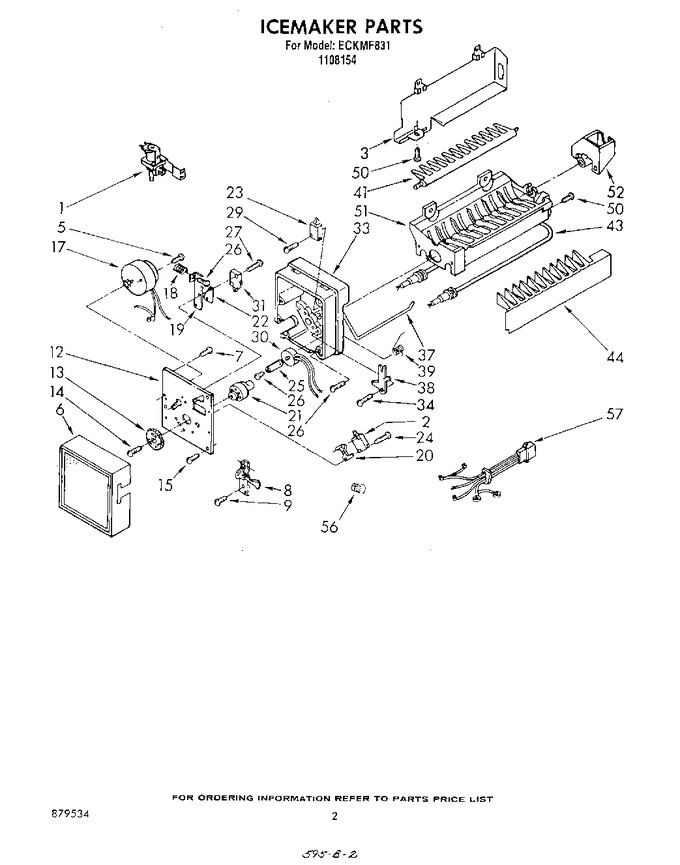

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4318047 | Valve Assembly (Replaces: 627820) |
|
Immediately | $ 74.09 | ||||
| 2 | 627848 | Switch, S.p.d.t. |
|
- | |||||
| 3 | 627751 | Shield, Heat |
|
- | |||||
| 5 | 488361 | Screw (use W/625846 Motor) |
|
- | |||||
| 6 | 627651 | Cover |
|
- | |||||
| 7 | 488542 | Screw, Ground |
|
- | |||||
| 8 | 627248 | Lever & Plate Assembly |
|
- | |||||
| 9 | 488622 | Screw, 4-40 X 1/4 |
|
- | |||||
| 12 | 627740 | Plate, Mounting |
|
- | |||||
| 13 | 625914 | Gear |
|
- | |||||
| 14 | 488957 | Screw |
|
- | |||||
| 15 | WP488787 | Screw, 8-18 X 1/2 (3) (Replaces: 488886) |
|
$ 11.26 | |||||
| 17 | 625846 | Motor |
|
- | |||||
| 18 | 627163 | Spring |
|
- | |||||
| 19 | 627024 | Plate, Valve Switch |
|
- | |||||
| 20 | 625834 | Spacer, Holding Switch |
|
$ 7.99 | |||||
| 21 | 625913 | Cam |
|
- | |||||
| 22 | 627680 | Insulator |
|
- | |||||
| 23 | 625851 | Switch, S.p.d.t. |
|
- | |||||
| 24 | 488361 | Screw, 4-40 X 1 |
|
- | |||||
| 25 | 625829 | Clamp (alternate) |
|
- | |||||
| 26 | 488372 | Screw, 8-32 X 1 |
|
- | |||||
| 27 | 00488362 | Screw, 4-40 X 3/4 (Replaces: 488362) |
|
$ 144.58 | |||||
| 29 | 488360 | Screw, 4-24 X 3/4 |
|
- | |||||
| 30 | 625844 | Thermostat |
|
- | |||||
| 31 | 625947 | Switch, S.p.s.t. |
|
- | |||||
| 33 | 625827 | Support |
|
- | |||||
| 34 | 627199 | Screw, Shoulder |
|
- | |||||
| 37 | 627003 | Arm, Shut-off |
|
- | |||||
| 38 | 625830 | Lever, Arm |
|
- | |||||
| 39 | 625832 | Spring, Shut-off Arm |
|
- | |||||
| 41 | 00627375 | Ejector (Replaces: 627375) |
|
Immediately | $ 203.33 | ||||
| 43 | 625843 | Heater, Mold |
|
- | |||||
| 44 | 625840 | Stripper, Ice |
|
- | |||||
| 50 | 00489128 | Screw (Replaces: 489128) |
|
$ 859.97 | |||||
| 51 | 625856 | Mold & Heater Assembly (includes Illus. 43) |
|
- | |||||
| 52 | 544304 | Beraing & Inlet |
|
- | |||||
| 56 | 227991 | Connector Wire |
|
- | |||||
| 57 | 627750 | Harness, Wiring |
|
- | |||||
| 57 | 837142 | Trim, Ice Cube Pan |
|
- | |||||
| 57 | W11625904 | Ice Cube Pan (Replaces: 939529) |
|
$ 67.83 | |||||
| 847855 | Accessory Bag, Inside |
|
- | ||||||
| WP489069 | Xscrew, 8 X 1/2 (Replaces: 489069) |
|
Immediately | $ 8.40 | |||||
| 510716 | Xxtube Clamp |
|
- | ||||||
| WP2158826 | Xxdampener (Replaces: 836074) |
|
$ 1.82 | ||||||
| WP16123 | Xxwasher (Replaces: 488292) |
|
$ 8.16 | ||||||
| 537588 | Xxnut, Inlet Valve |
|
- | ||||||
| 549193 | Clamp-service Cord |
|
$ 14.06 | ||||||
| 627854 | Xxtube Assembly, Inlet Valve |
|
- | ||||||
| WP627018 | Xxnut & Sleeve Assembly (Replaces: 627018) |
|
$ 11.51 | ||||||
| W10823511 | Xxplastic Tube (Replaces: 653499) |
|
Immediately | $ 32.41 | |||||
| WP488878 | Xxtube Clamp (Replaces: 488878) |
|
$ 12.18 | ||||||
| WP488366 | Xxtube Clamp (Replaces: 488366) |
|
$ 11.92 | ||||||
| WPW10141625 | Xxscrew, 8-32 X 1/2 (Replaces: 488649) |
|
$ 22.22 | ||||||
| 4387491 | Insert, Plastic Tube (Replaces: 841707) |
|
$ 8.23 | ||||||
| WP489069 | Xxscrew, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 8.40 | |||||
| WP2196157 | Xxfitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 12.59 | |||||
| 1102299 | Accessory Bag, Outside Parts |
|
- | ||||||
| 939027 | Xwater, Inlet Tube |
|
- | ||||||
| LIT879534 | Parts List |
|
- | ||||||
| LIT1108158 | Instruction Booklet |
|
- | ||||||
| WP2187501 | Wiring Harness (ice Maker) (Replaces: 944811) |
|
$ 119.45 |
