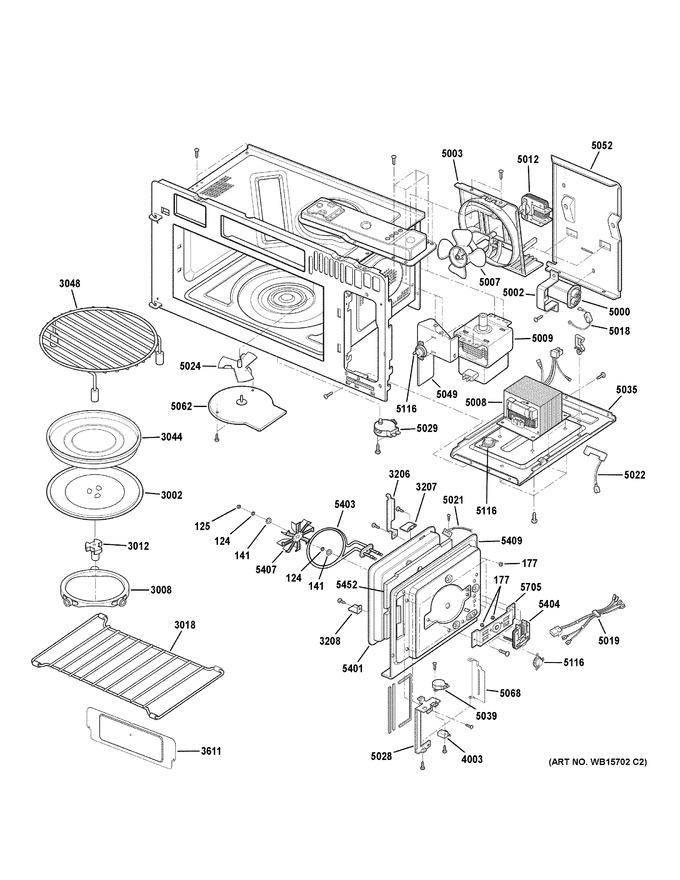

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 124 | WB1X1522 | Washer, Splk |
|
- | |||||
| 125 | WB1X1520 | Nut,hexagon |
|
- | |||||
| 141 | WB1X1521 | Washer,plain |
|
- | |||||
| 177 | WB01X35369 | Nut Common |
|
- | |||||
| 3002 | WB48X35365 | Glass Tray |
|
- | |||||
| 3008 | WB06X35384 | Turntable Asm |
|
- | |||||
| 3012 | WG02F06263 | Shaft Turn Table (Replaces: WB06X10658) |
|
$ 24.78 | |||||
| 3018 | WB48X10064 | Shelf |
|
$ 92.70 | |||||
| 3044 | WB27X42489 | Metal Tray |
|
- | |||||
| 3048 | WB48X35378 | Shelf |
|
- | |||||
| 3206 | WB01X36209 | Large Bracket Heater |
|
- | |||||
| 3207 | WB01X36210 | Small Bracket Heater |
|
- | |||||
| 3208 | WB06X35376 | Holder - Heater |
|
- | |||||
| 3611 | WB06X35395 | Safety Cover |
|
- | |||||
| 4003 | WB24X25397 | Switch Monitor Interlock |
|
- | |||||
| 5000 | WG02F00228 | Capacitor, H.v (Replaces: WB27X10701) |
|
$ 63.60 | |||||
| 5002 | WB02X32593 | Capacitor Bracket |
|
- | |||||
| 5003 | WB39X32800 | Guide Suction |
|
- | |||||
| 5007 | WB38X10005 | Fan Blade |
|
- | |||||
| 5008 | WB26X35402 | High Voltage Transformer |
|
- | |||||
| 5009 | WB27X32766 | Magnetron |
|
- | |||||
| 5012 | WB26X10247 | Motor,ac Fan |
|
- | |||||
| 5018 | WB27X35382 | Diode-cable Asm |
|
- | |||||
| 5019 | WB18X35381 | Harness |
|
- | |||||
| 5021 | WG02F05822 | Thermistor (Replaces: WB18X10126) |
|
$ 49.56 | |||||
| 5022 | WB02X35377 | Fuse Asm |
|
- | |||||
| 5024 | WB38X35383 | Fan Asm |
|
- | |||||
| 5028 | WB02X33933 | Bracket Damper |
|
- | |||||
| 5029 | WB26X10186 | Motor(circ) Synchronous |
|
- | |||||
| 5035 | WB56X35364 | Plate Bottom |
|
- | |||||
| 5039 | WB26X10248 | Motor, Ac Synchronous |
|
- | |||||
| 5049 | WB34X32721 | Guide Air |
|
- | |||||
| 5052 | WB34X32729 | Guide Air |
|
- | |||||
| 5062 | WB02X32719 | Cover Asm Stirrer Fan |
|
- | |||||
| 5068 | WB34X35371 | Damper Bracket |
|
- | |||||
| 5116 | WB26X35390 | Thermostat |
|
- | |||||
| 5116 | WB20X10048 | Thermostat |
|
- | |||||
| 5401 | WB02X35367 | Chamber |
|
- | |||||
| 5403 | WB44X10046 | Convection Heater |
|
- | |||||
| 5404 | WB26X35370 | Motor Circulation |
|
- | |||||
| 5407 | WB26X32609 | Convection Fan Blade |
|
- | |||||
| 5409 | WB35X34794 | Insulator |
|
- | |||||
| 5452 | WB06X10664 | Glass Wool |
|
- | |||||
| 5705 | WB56X32723 | Plate Side Heater |
|
- |
