SELECT A DIAGRAM

Control Parts


Door Parts


Installation Parts


Interior Parts (1)


Latch Board Parts


Oven Cavity Parts

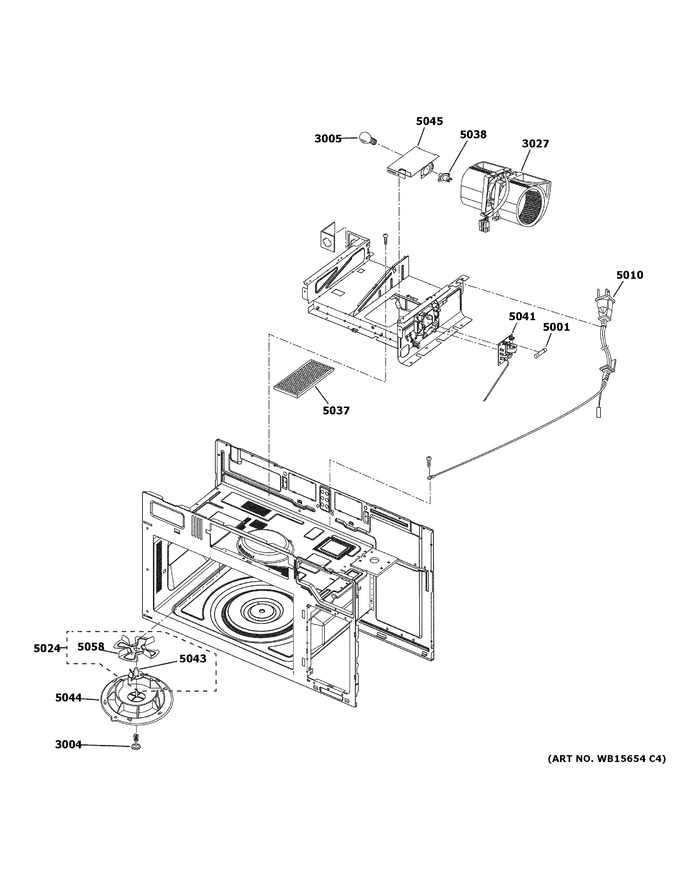

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3002	WB49X10129		Tray,glass		Appelez-nous	-
3004	WB01X10055		Rivet Assy All		Appelez-nous	-
3005	WG02F05588		Microwave Incandescent Light Bulb   (Replaces: WB36X10328)				$ 23.22
3008	WB06X10875		Turntable Asm		Appelez-nous	-
3009	WB26X10226		Motor, Ac Synchronous				$ 45.18
3012	WB06X10873		Shaft,turntable		Appelez-nous	-
3027	WB26X35681		Motorventilation		Appelez-nous	-
3037	WB34X36287		Screen High Voltage		Appelez-nous	-
5000	WB27X26368		Capacitor,high Voltage		Appelez-nous	-
5001	WB27X25389		Fuse		Appelez-nous	-
5002	WB34X25381		Bracket, Capacitor		Appelez-nous	-
5008	WB27X47437		Transformer,high Voltage		Appelez-nous	-
5009	WB49X45009		Mag Asm		Appelez-nous	-
5010	WB18X35512		Power Cord Asm		Appelez-nous	-
5014	WB18X35676		Multi Harness		Appelez-nous	-
5016	WB18X35517		Thermostat		Appelez-nous	-
5018	WB27X35382		Diode-cable Asm		Appelez-nous	-
5022	WB27X38974		Fuse		Appelez-nous	-
5024	WB02X35686		Fan Asm		Appelez-nous	-
5034	WB63X35688		Bottom Plate		Appelez-nous	-
5035	WB63X35689		Bottom Plate		Appelez-nous	-
5037	WB02X35687		Charcoal Filter		Appelez-nous	-
5038	WB08X10059		Lamp Holder		Appelez-nous	-
5041	WB02X35509		Noise Filter Assembly		Appelez-nous	-
5043	WB02X35690		Fan Holder		Appelez-nous	-
5044	WB06X10712		Cover Stirrer Fan				$ 29.65
5045	WB02X35673		Lamp Cover		Appelez-nous	-
5058	WB06X10706		Fan		Appelez-nous	-
5116	WB20X10048		Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
