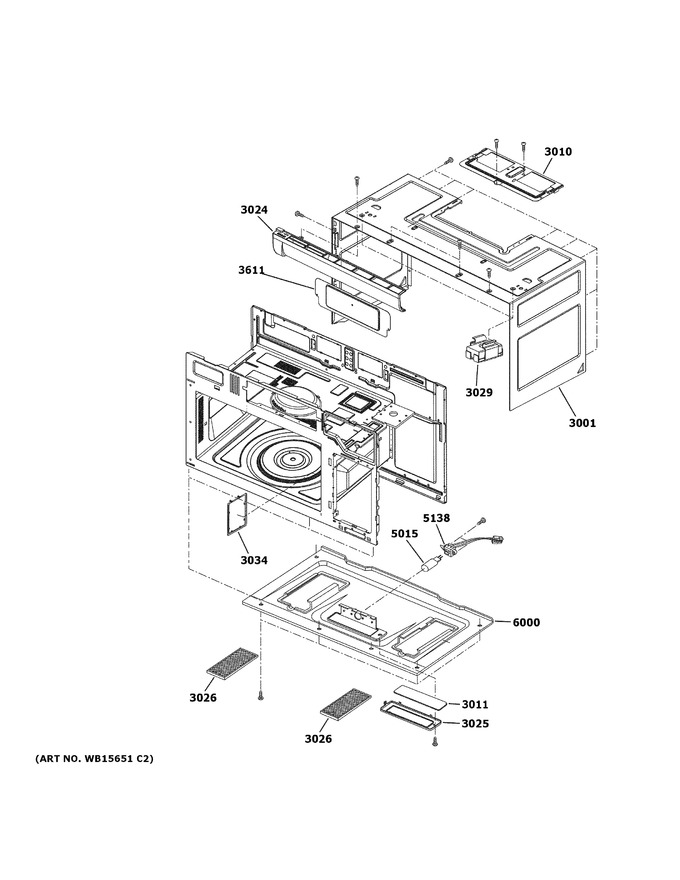

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3001 | WB56X35495 | Case |
|
- | |||||
| 3010 | WB06X10797 | Plate |
|
- | |||||
| 3011 | WB36X10293 | Glass |
|
- | |||||
| 3024 | WB63X35497 | Vent Grille |
|
- | |||||
| 3025 | WB06X10874 | Bracket,lamp |
|
- | |||||
| 3026 | WB02X32793 | Grease Filter |
|
- | |||||
| 3029 | WB01X10124 | Nut Assy |
|
- | |||||
| 3034 | WB06X10601 | Canopy Resin |
|
- | |||||
| 3611 | WB06X35395 | Safety Cover |
|
- | |||||
| 5015 | WB25X25393 | Halogen Light |
|
- | |||||
| 5138 | WB02X29242 | Cooktop Lamp Socket |
|
- | |||||
| 6000 | WB63X35500 | Base Plate |
|
- |
