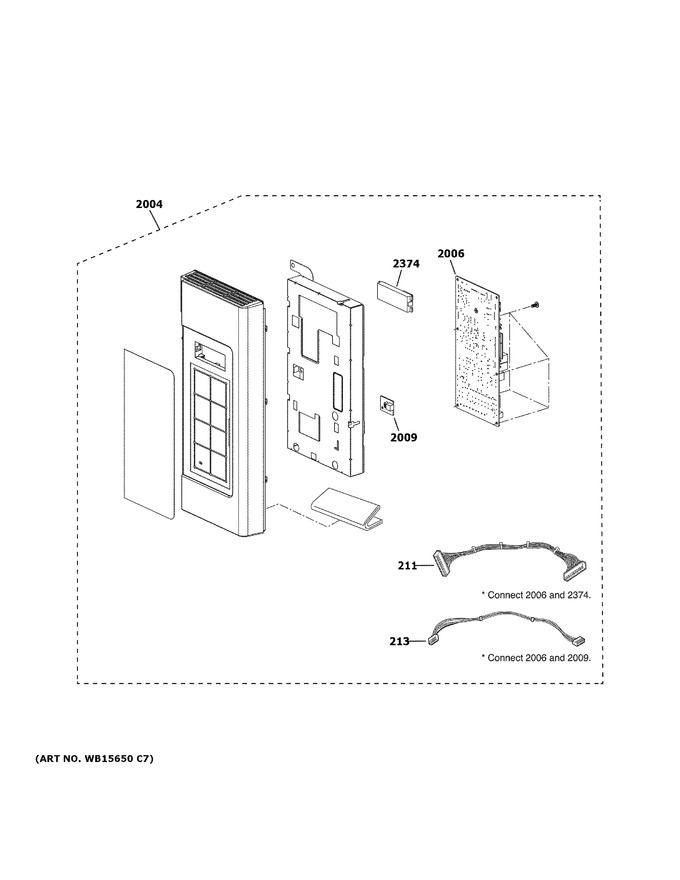

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 211 | WB18X35393 | Harness From Main Pcb To Led Display |
|
- | |||||
| 213 | WB18X35389 | Harness From Main Board To Pcb Asm |
|
- | |||||
| 2004 | WB56X35746 | White Control Panel |
|
- | |||||
| 2006 | WB27X35748 | Main Pcb |
|
- | |||||
| 2009 | WB27X35569 | Pcb Asm |
|
- | |||||
| 2374 | WB18X35406 | Leddisplay |
|
- |
