New Model Search:

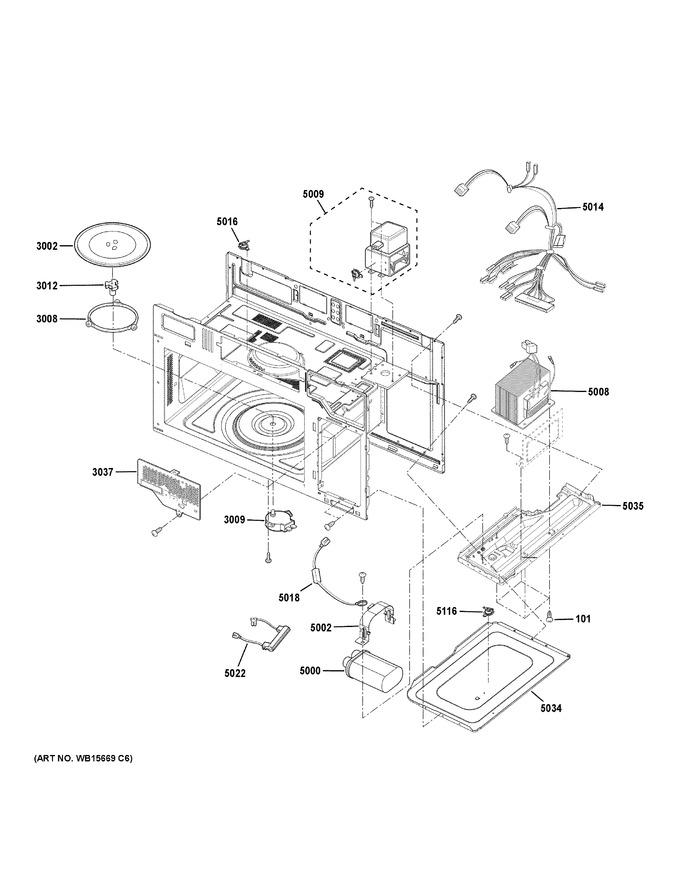

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WB02X10745 | Screw - Binding Head |
|
- | |||||
| 3002 | WB49X10129 | Tray,glass |
|
- | |||||
| 3008 | WB06X10875 | Turntable Asm |
|
- | |||||
| 3009 | WB26X10226 | Motor, Ac Synchronous |
|
$ 45.18 | |||||
| 3012 | WB06X10873 | Shaft,turntable |
|
- | |||||
| 3037 | WB34X36287 | Screen High Voltage |
|
- | |||||
| 5000 | WB27X26368 | Capacitor,high Voltage |
|
- | |||||
| 5002 | WB34X25381 | Bracket, Capacitor |
|
- | |||||
| 5008 | WB27X47437 | Transformer,high Voltage |
|
- | |||||
| 5009 | WB49X45009 | Mag Asm |
|
- | |||||
| 5014 | WB18X47434 | Harness Wire |
|
- | |||||
| 5016 | WB18X35517 | Thermostat |
|
- | |||||
| 5018 | WB27X35382 | Diode-cable Asm |
|
- | |||||
| 5022 | WB27X38974 | Fuse |
|
- | |||||
| 5034 | WB63X35688 | Bottom Plate |
|
- | |||||
| 5035 | WB63X35689 | Bottom Plate |
|
- | |||||
| 5116 | WB20X10048 | Thermostat |
|
- | |||||
| 5412 | WB27X36065 | Capacitor |
|
- |
