New Model Search:

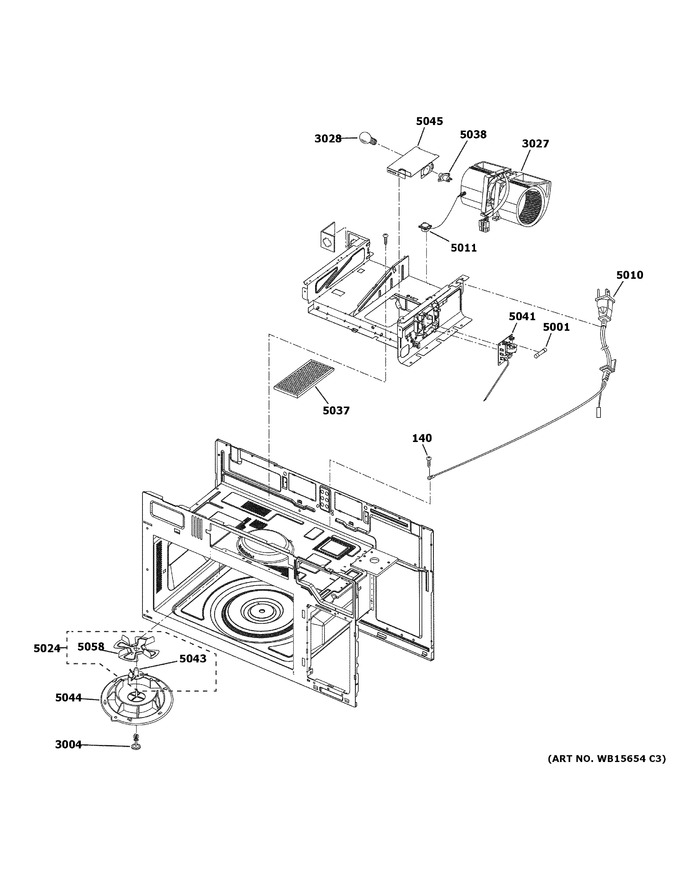

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 140 | WB01X35374 | Screw |
|
- | |||||
| 3004 | WB01X10055 | Rivet Assy All |
|
- | |||||
| 3027 | WB26X35681 | Motorventilation |
|
- | |||||
| 3028 | WB36X10292 | Lamp , Incandescent |
|
- | |||||
| 5001 | WB27X25389 | Fuse |
|
- | |||||
| 5010 | WB18X35512 | Power Cord Asm |
|
- | |||||
| 5011 | WG02F01437 | Sensor Asm (Replaces: WB27X10857) |
|
$ 113.04 | |||||
| 5024 | WB02X35686 | Fan Asm |
|
- | |||||
| 5037 | WB02X35687 | Charcoal Filter |
|
- | |||||
| 5038 | WB08X10059 | Lamp Holder |
|
- | |||||
| 5041 | WB02X35509 | Noise Filter Assembly |
|
- | |||||
| 5043 | WB02X35690 | Fan Holder |
|
- | |||||
| 5044 | WB06X10712 | Cover Stirrer Fan |
|
$ 29.65 | |||||
| 5045 | WB02X35673 | Lamp Cover |
|
- | |||||
| 5058 | WB06X10706 | Fan |
|
- |
