SELECT A DIAGRAM
Control Parts
Door Parts
Installation Parts
Interior Parts (1)
Interior Parts (2)
Latch Board Parts
Oven Cavity Parts
SELECT A DIAGRAM
New Model Search:

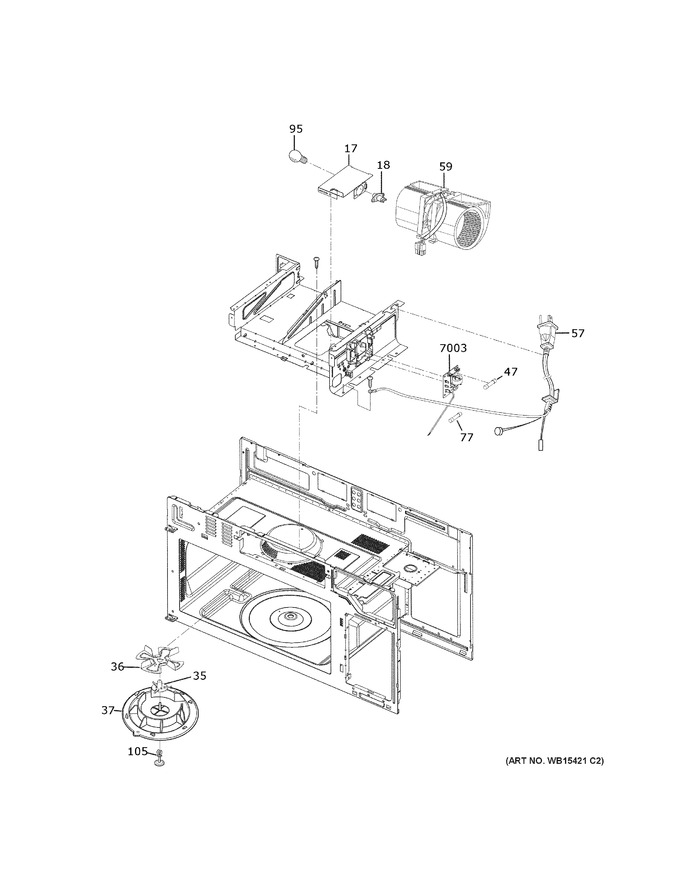

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | WB02X25385 | Cover Lamp |
|
- | |||||
| 18 | WB08X10059 | Lamp Holder |
|
- | |||||
| 35 | WB02X11261 | Holder Stirrer Fan |
|
- | |||||
| 36 | WB06X10706 | Fan |
|
- | |||||
| 37 | WB06X10712 | Cover Stirrer Fan |
|
$ 29.65 | |||||
| 47 | WB27X25389 | Fuse |
|
- | |||||
| 57 | WB18X25396 | Power Cord Asm |
|
- | |||||
| 59 | WB26X25850 | Motor Ac Ventilation |
|
- | |||||
| 77 | WB27X38974 | Fuse Asm |
|
- | |||||
| 95 | WB36X10292 | Lamp , Incandescent |
|
- | |||||
| 105 | WB01X10055 | Rivet Assy All |
|
- | |||||
| 7003 | WB27X11134 | Noise Filter |
|
- |
