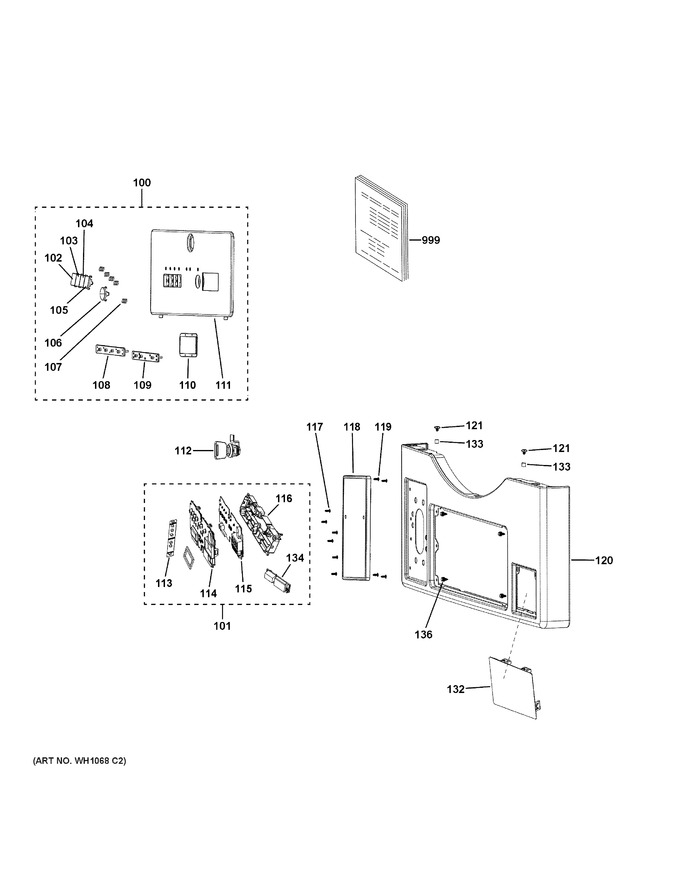

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WE22X33549		Control Panel Assembly		Appelez-nous	-
101	WE22X33548		User Interface Board Assembly		Appelez-nous	-
102	WE01X33579		High Temp Button		Appelez-nous	-
103	WE01X33567		Mid Temp Button		Appelez-nous	-
104	WE01X33581		Low Temp Button		Appelez-nous	-
105	WE01X33580		Cool Temp Button		Appelez-nous	-
106	WE01X33585		Start Button		Appelez-nous	-
107	WH02X33348		Button Spring		Appelez-nous	-
108	WE01X33571		Light Guide		Appelez-nous	-
109	WE01X33534		Light Guide		Appelez-nous	-
110	WE13X33584		Control Panel Display Cover		Appelez-nous	-
111	WE22X33831		Control Panel Dryer		Appelez-nous	-
112	WE01X33503		Control Panel Lock		Appelez-nous	-
113	WH01X33418		Silicone Key Mat		Appelez-nous	-
114	WH01X33391		User Interface Board Cover		Appelez-nous	-
115	WE22X33505		User Interface Board		Appelez-nous	-
116	WH01X33387		User Interface Board Housing		Appelez-nous	-
117	WH02X26155		Tapping Screw		Appelez-nous	-
118	WE13X33582		Control Panel Plate Cover		Appelez-nous	-
119	WH02X27685		Screw St4*10-b		Appelez-nous	-
120	WE13X33829		Control Panel Frame		Appelez-nous	-
121	WH02X26267		Screw St3.5*12		Appelez-nous	-
132	WE13X33573		Control Panel Hole Cover		Appelez-nous	-
133	WE02X28703		Locator Pin		Appelez-nous	-
134	WH22X29551		Wifi Board		Appelez-nous	-
136	WR01X27788		Screw		Appelez-nous	-
999	49-3000279		Pm Owners And Install		Appelez-nous	-
999	31-3000280		Pm Mini Manual And Wiring		Appelez-nous	-
