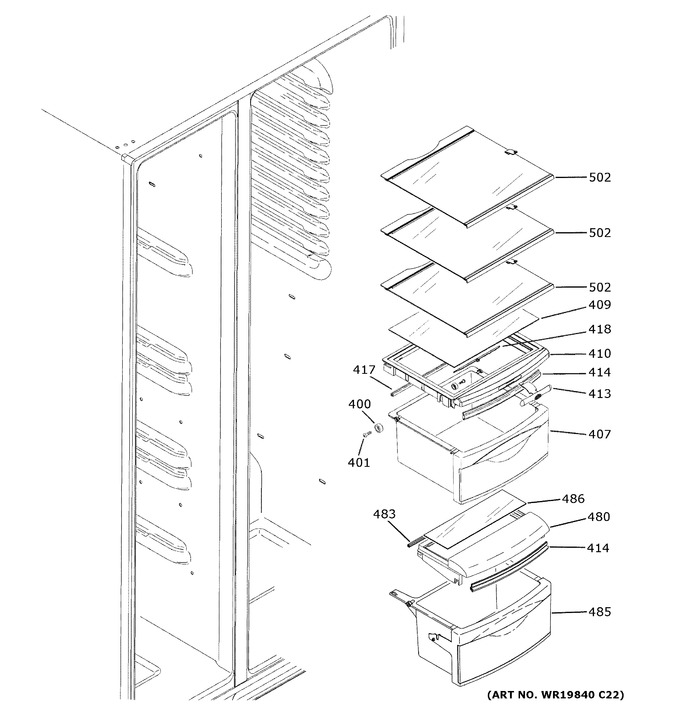

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.57
401	WR01X10615		Scr 10-16		Appelez-nous	-
407	WR71X38328		Pan Middle Asm		Appelez-nous	-
409	WR01L01062		Cover Pan Glass   (Replaces: WR32X10156)				$ 50.38
410	WR32X26246		Cover Middle Pan		Appelez-nous	-
413	WR02X10821		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.15
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
480	WR01L00734		Cover Bottom Pan   (Replaces: WR32X10885)				$ 64.85
483	WR14X10197		Gasket Cover Rear		Appelez-nous	-
485	WR32X32346		Pan Bottom Asm		Appelez-nous	-
486	WR01L01060		Cover Pan Glass   (Replaces: WR32X10155)				$ 45.83
502	WR71X28078		Slideout Shelf		Appelez-nous	-
