View Diagram in Separate Window
Print Part List

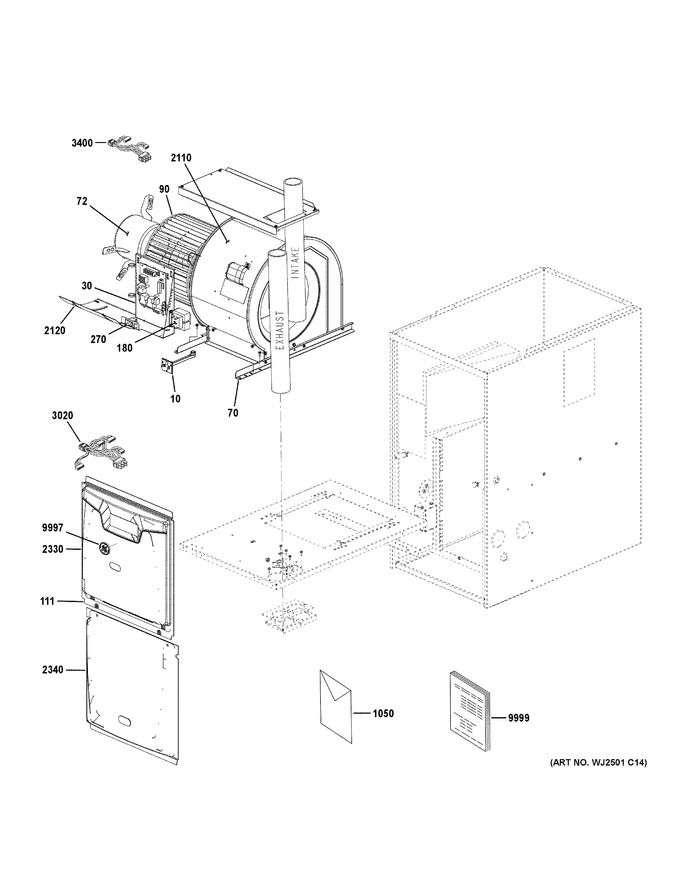

SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 69W42 | 102135-09 Control-limit (220f) |
|
- | |||||
| 30 | 16C81 | 607436-03 Ignition Control Kit |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 81W32 | 607421-01 X13 1/2hp Motor-prog..blower |
|
- | |||||
| 72 | 23V71 | 624623-01 Motor Repl 1/2hp 115v Ct |
|
- | |||||
| 90 | 89J10 | Wheel-blower-(cto) |
|
- | |||||
| 111 | 74W13 | Pnl Filler Door Trim-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 1050 | 537573-01 | Sticker - Wiring Diagram-(cto) |
|
- | |||||
| 2110 | 57M87 | Hsg-blwr 10x8 612256-02-(cto) |
|
- | |||||
| 2120 | 68W48 | Blwr Hsg Cutoff Plate-(cto) |
|
- | |||||
| 2330 | 623816-01U | Top Door, A-width 80/90% Uf Blwr-(cto) |
|
- | |||||
| 2340 | 623651-02U | Btm Door,a-width, 80% Uf Vest-(cto) |
|
- | |||||
| 3020 | 82W06 | Harness-wiring-(cto) |
|
- | |||||
| 3400 | 20A21 | Motor Harness-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
