SELECT A DIAGRAM

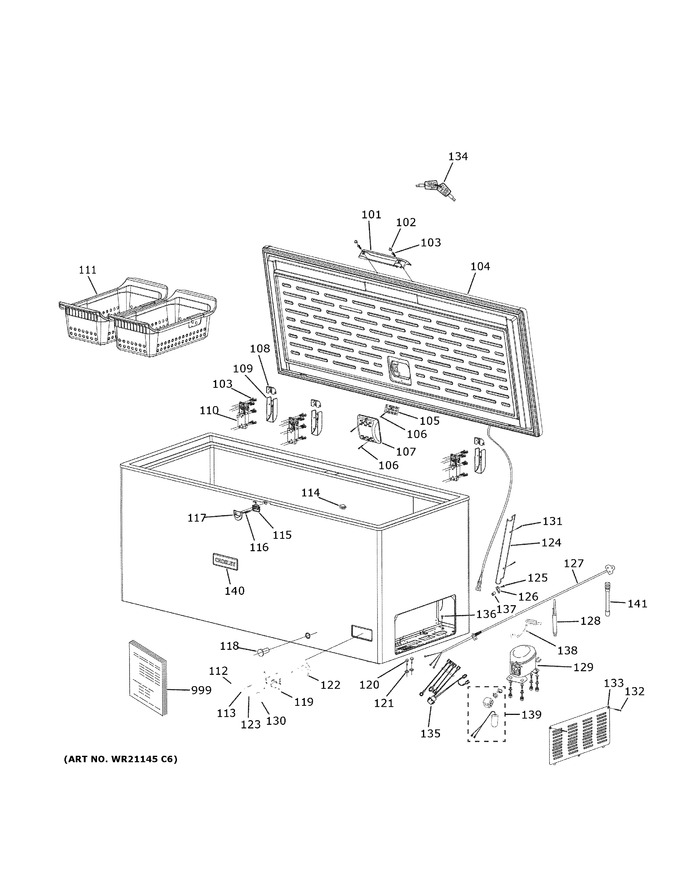

Freezer
Lokring Connectors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WR12X28041 | Freezer Door - Handle White |
|
- | |||||
| 102 | WR01X28054 | Cover Screw White |
|
- | |||||
| 103 | WR01X35245 | Screw |
|
- | |||||
| 104 | WR78X36605 | White Freezer Door & Gasket |
|
- | |||||
| 105 | WR55X29591 | Led Board |
|
- | |||||
| 106 | WR01X28030 | Screw St3.5 X 13 |
|
- | |||||
| 107 | WR13X28032 | Led Light Cover |
|
- | |||||
| 108 | WR13X28037 | Hinge Cover Top White |
|
- | |||||
| 109 | WR13X28039 | Hinge Cover Bottom White |
|
- | |||||
| 110 | WR13X28035 | Hinge Freezer Door 16' |
|
- | |||||
| 111 | WR71X28046 | Freezer Basket Upper |
|
- | |||||
| 112 | WR01X29590 | Green Light |
|
- | |||||
| 113 | WR13X29592 | Light Cover |
|
- | |||||
| 114 | WR01X28051 | Drain Plug Interior |
|
$ 1.37 | |||||
| 115 | WR01X28052 | Door Lock |
|
- | |||||
| 116 | WR01X20672 | Screw |
|
- | |||||
| 117 | WR13X28055 | Cover Door Lock |
|
- | |||||
| 118 | WR01X36306 | Drain Plug - Inner |
|
- | |||||
| 119 | WR13X29589 | Control Panel Cover |
|
- | |||||
| 120 | WR01X27844 | Grounding Screw M4 X 8 |
|
- | |||||
| 121 | WR01X27831 | Washer |
|
- | |||||
| 122 | WG03F07522 | Thermostat (Replaces: WR09X27830) |
|
$ 78.84 | |||||
| 123 | WR01X29593 | Red Light |
|
- | |||||
| 124 | WR13X28040 | Harness Door Cover |
|
- | |||||
| 125 | WR01X27825 | Screw St4.2 X 13 |
|
- | |||||
| 126 | WR01X27816 | Clamp Power Cord |
|
- | |||||
| 127 | WR55X28031 | Power Cord |
|
- | |||||
| 128 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 129 | WR87X32068 | Compressor |
|
- | |||||
| 130 | WR01X29594 | Thermostat Knob |
|
- | |||||
| 131 | WR01X27789 | Screw St3.5 X 9.5 |
|
- | |||||
| 132 | WR01X27843 | Screw St3.5 X 13 |
|
- | |||||
| 133 | WR14X36085 | Access Cover |
|
- | |||||
| 134 | WR01X28053 | Door Key |
|
$ 12.25 | |||||
| 135 | WR55X29596 | Wire Harness |
|
- | |||||
| 136 | WR01X10745 | Power Cord Fix Belt |
|
- | |||||
| 137 | WR02X12194 | Grommet Rubber |
|
- | |||||
| 138 | WR01X29595 | Tube |
|
- | |||||
| 139 | WR87X32069 | Compressor Electrical |
|
- | |||||
| 140 | WR02X30818 | Crosley Badge |
|
- | |||||
| 141 | WR87X30876 | R600 Process Valve W/ Red Cap |
|
- | |||||
| 999 | 49-1000369 | Pm Owners Manual |
|
- | |||||
| 999 | 31-1000378 | Pm Mini Manual And Wiring |
|
- |
