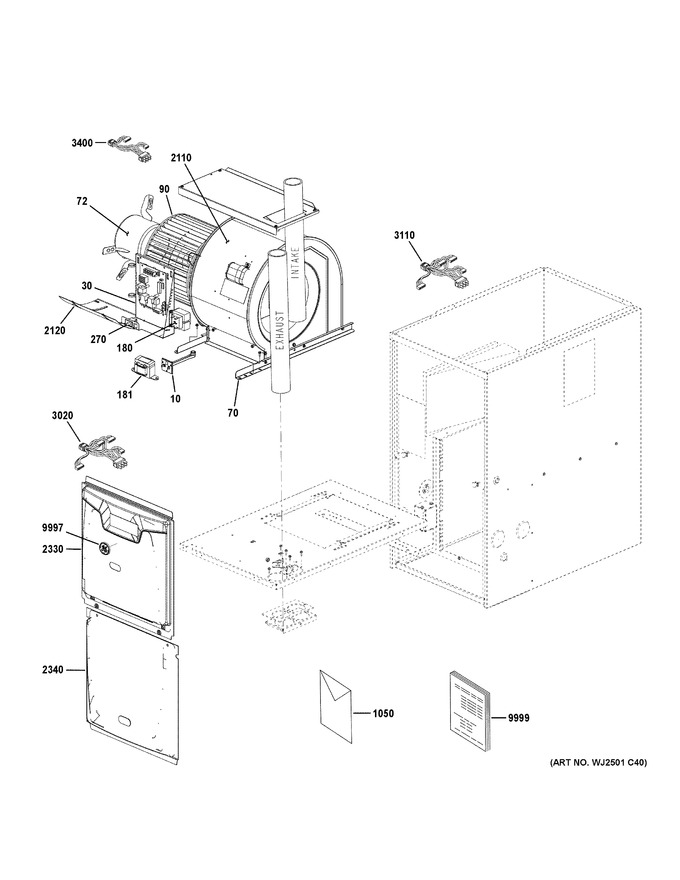

SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Optional Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 69W37 | 102135-04 Control-limit Aux (165f) |
|
- | |||||
| 30 | 16C81 | 607436-03 Ignition Control Kit |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 81W36 | 607421-05 X13 3/4hp Motor-prog. Blower |
|
- | |||||
| 90 | 16596 | Lb-29333bm Wheel-(cto) |
|
$ 266.40 | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 181 | 10Y66 | Transformer Power Choke-(cto) |
|
$ 106.84 | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 1050 | 537452-01 | Wiring Diagram -a80df1e/80g1df-e-(cto) |
|
- | |||||
| 2110 | 57M88 | Housing-blower -(cto) |
|
- | |||||
| 2120 | 68W49 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 623652-03U | Top Door B-width 80/90% Df Blwr-(cto) |
|
- | |||||
| 2340 | 623817-03U | Btm Door B-width 80% Df Vestibule-(cto) |
|
- | |||||
| 3020 | 81W43 | 607349-02 Harness-wire-(cto) |
|
- | |||||
| 3110 | 12M66 | Harness-wiring Unit-(cto) |
|
- | |||||
| 3400 | 20A21 | Motor Harness-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
