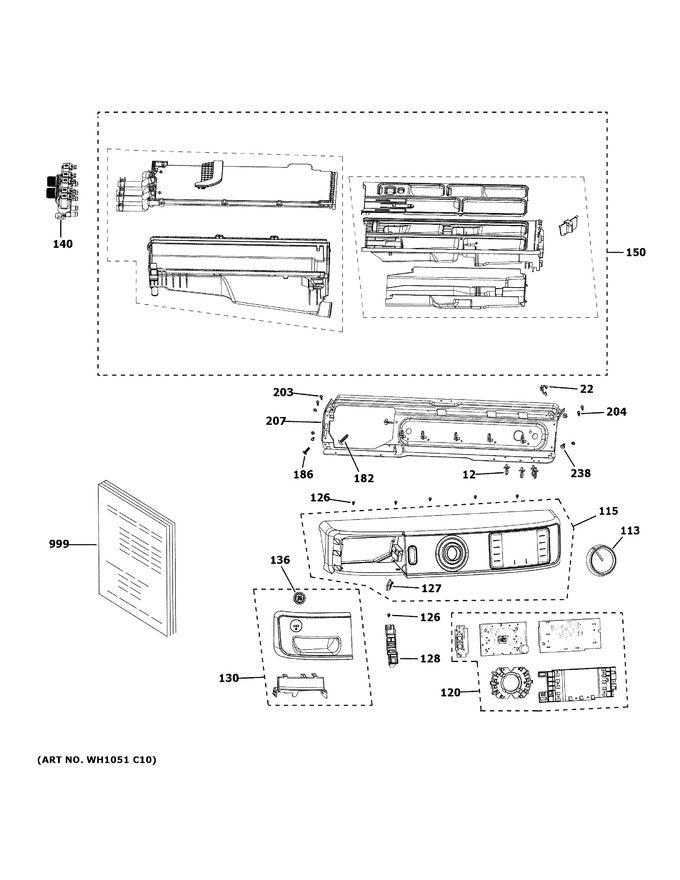

SELECT A DIAGRAM
Cabinet (1)
Cabinet (2)
Controls & Dispenser
Front Panel & Door
Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | WH02X29626 | Ground Harness Clamp |
|
- | |||||
| 22 | WE02X28699 | Fixed-line Clip |
|
- | |||||
| 113 | WH01X30000 | Selector Knob |
|
- | |||||
| 115 | WH22X29545 | Control Panel White |
|
- | |||||
| 120 | WH22X34938 | User Interface Board Fl Washer 510n And |
|
- | |||||
| 120 | WH22X36737 | User Interface Board Fl Washer 510v And |
|
- | |||||
| 126 | WH02X27219 | M Screw |
|
- | |||||
| 127 | WH01X29669 | Rj45 Cover |
|
- | |||||
| 128 | WH01X29631 | Power Button Support |
|
- | |||||
| 130 | WH01X29680 | Dispenser Drawer Handle |
|
- | |||||
| 136 | WH01X29682 | Ge Badge |
|
- | |||||
| 140 | WH23X29538 | Water Valve |
|
- | |||||
| 150 | WH42X29517 | Dispenser Drawer |
|
- | |||||
| 182 | WE02X26338 | Screw St4*16 |
|
- | |||||
| 186 | WH02X30343 | Screw M4*12 |
|
- | |||||
| 203 | WH02X30339 | Screw M4*10 |
|
- | |||||
| 204 | WH02X26236 | Screw M4*10 |
|
- | |||||
| 207 | WH13X29643 | Control Bracket |
|
- | |||||
| 238 | WH02X30370 | Shoulder Bolt |
|
- | |||||
| 999 | 49-3000217 | Pm Owners And Install |
|
- | |||||
| 999 | 49-3000364 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-3000269 | Pm Mini Manual And Wiring |
|
- |
