SELECT A DIAGRAM

Center Spacer


Control Panel


Convection Fan


Lower Door


Lower Oven


Pedestal


Upper Door


Upper Oven

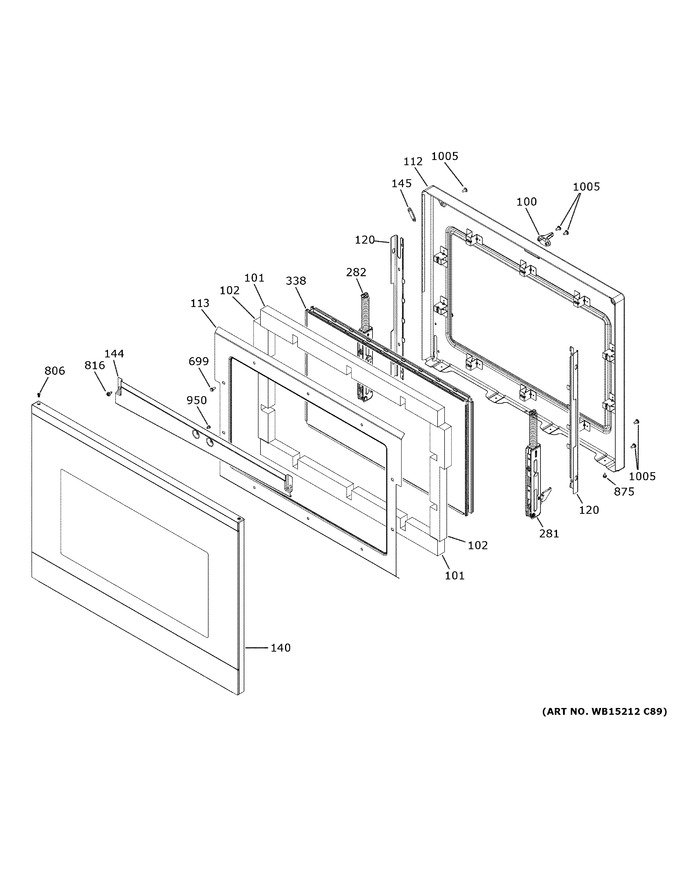

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	WB14X34677		Latch Pawl		Appelez-nous	-
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X33859		Liner Oven Door Asm		Appelez-nous	-
113	WB34X31516		Door Insulation Retainer		Appelez-nous	-
120	WB34X28482		Liner Support		Appelez-nous	-
140	WB56X50193		Outer Door - Stainless		Appelez-nous	-
140	WB56X45591		Outer Door-stainless		Appelez-nous	-
144	WB07X40786		Deflector Outer Door Glass		Appelez-nous	-
145	WB02X32816		Door Liner Plug		Appelez-nous	-
281	WB10X33832		Soft Open Hinge Right Door		Appelez-nous	-
282	WB10X33858		Soft Open Hinge Left Door		Appelez-nous	-
338	WB56X27662		Window Pack Asm		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
806	WB01X32952		Screw 8-32 Tt Flt 7/20		Appelez-nous	-
816	WB1X1424		Screw, Transformer		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
950	WB1X1178		Screw		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57

    View Diagram in Separate Window       Print Part List
