New Model Search:

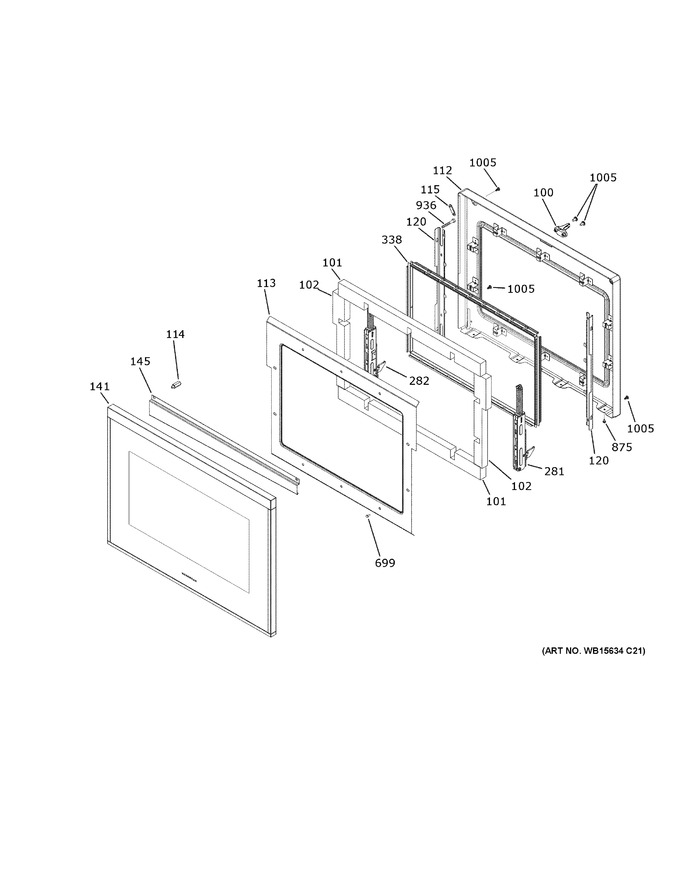

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WB14X34677 | Latch Pawl |
|
- | |||||
| 101 | WB35X21737 | Insulation Dr Top |
|
- | |||||
| 102 | WB35X31513 | Door Side Insulation |
|
- | |||||
| 112 | WB63X33859 | Liner Oven Door Asm |
|
- | |||||
| 113 | WB34X31516 | Door Insulation Retainer |
|
- | |||||
| 114 | WB02X34689 | Spacer Reinforcement |
|
- | |||||
| 115 | WB02X32816 | Door Liner Plug |
|
- | |||||
| 120 | WB34X46746 | Liner Support |
|
- | |||||
| 141 | WB56X43550 | Outer Door W/o Logo |
|
- | |||||
| 145 | WB24X32771 | Deflector Outer Door Glass Rj45 Port |
|
- | |||||
| 281 | WB10X40866 | Hinge Door Soft Open Right |
|
- | |||||
| 282 | WB10X40867 | Hinge Door Soft Open Left |
|
- | |||||
| 338 | WB56X27662 | Window Pack Asm |
|
- | |||||
| 699 | WB1K5150 | Wb1m1 |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 936 | WB01X24096 | Scr 8-18x |
|
- | |||||
| 1005 | WS01A01018 | Screw 10-32 Tr T (Replaces: WB01T10008) |
|
Immediately | $ 3.57 |
