SELECT A DIAGRAM

Cafe Customization


Center Spacer


Control Panel


Lower Convection Fan


Lower Door


Lower Oven


Pedestal


Upper Convection Fan


Upper Door


Upper Oven

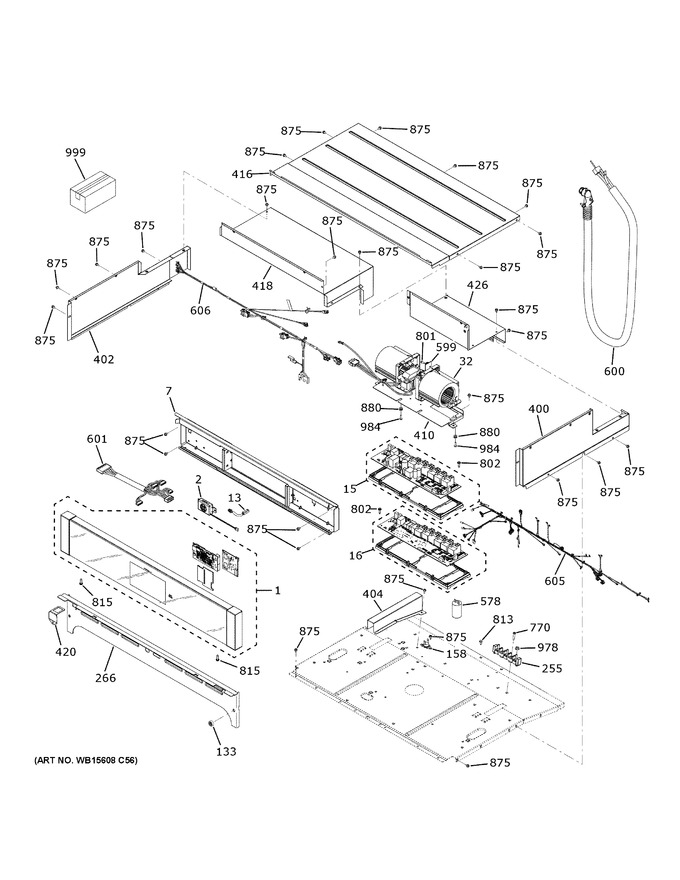

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB56X47974		Control Panel W/ Wifi-stainless		Appelez-nous	-
2	WB27X33354		Speaker 70c 3w		Appelez-nous	-
7	WB07X32471		Control Panel Mounting Bracket		Appelez-nous	-
13	WB18X30704		Jumper		Appelez-nous	-
15	WB27X47968		Upper Oven Control Rc17 (flashed)		Appelez-nous	-
15	WB27X47969		Upper Oven Control Rc17 - Flashed		Appelez-nous	-
16	WB27X47968		Lower Oven Control Rc17 - Flashed		Appelez-nous	-
16	WB27X47969		Lower Oven Control Rc17 (flashed)		Appelez-nous	-
32	WB26X31060		Cooling Fan		Appelez-nous	-
133	WB03T10341		Bumper Door		Appelez-nous	-
158	WB24X35587		Switch Limit		Appelez-nous	-
255	WB17T10024		Block Terminal		Appelez-nous	-
266	WB07X32831		Upper Vent Trim		Appelez-nous	-
400	WB34T10164		Cover Top Right Edge		Appelez-nous	-
402	WB44T10126		Cover Top Left Edge		Appelez-nous	-
404	WB34T10150		Channel Upper Air Vent		Appelez-nous	-
410	WB37T10026		Bracket Upper Fan Mount		Appelez-nous	-
416	WB34X28390		Cover Housing Frt		Appelez-nous	-
418	WB24X32772		Cover Top Rear		Appelez-nous	-
420	WB24X33028		Rj45 Bracket		Appelez-nous	-
426	WB35T10273		Cover Wire Rear		Appelez-nous	-
578	WG02F00227		Capacitor Motor   (Replaces: WB27T10662)				$ 25.73
599	WB27T11463		Board Fan Sensor		Appelez-nous	-
600	WB18X33486		Conduit Wire Dwo		Appelez-nous	-
600	WB18T10580		Optional 6 Ft Conduit		Appelez-nous	-
601	WB18X33150		Ui Com And Rj45 Harness		Appelez-nous	-
605	WB18X33149		Main Harness Wire		Appelez-nous	-
606	WB18X32872		Latch Com Harness Wire		Appelez-nous	-
606	WB18X33154		Latch Com Harness Wire		Appelez-nous	-
770	WB1K5072		Screw		Appelez-nous	-
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
802	WG02A00783		Trim Screw-blk   (Replaces: WB1K5173)				$ 3.57
813	WS02X10087		Scr 10-32 Gx Hxw 7/16 S		Appelez-nous	-
815	WB01X21650		Scr 8-18 Ab Trt20nbs 5/8		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
880	WB01T10128		Grommet		Appelez-nous	-
978	WB1X1259		Hex Nut		Appelez-nous	-
984	WB01T10130		Screw 7-19 1/4hex 1/2in		Appelez-nous	-
999	49-2000256		Pm Quick Owners Manual		Appelez-nous	-
999	31-10882		Instruction Install		Appelez-nous	-
999	49-2000379		Pm Owners Manual		Appelez-nous	-
999	31-2000263		Pm Mini Manual And Wiring		Appelez-nous	-
999	31-2000181		Pm Install Instructions		Appelez-nous	-
999	31-10957		Pm Install Instructions		Appelez-nous	-
999	WG02A00297		Lubricant Cleaner   (Replaces: WB02T10303)				$ 69.62

    View Diagram in Separate Window       Print Part List
