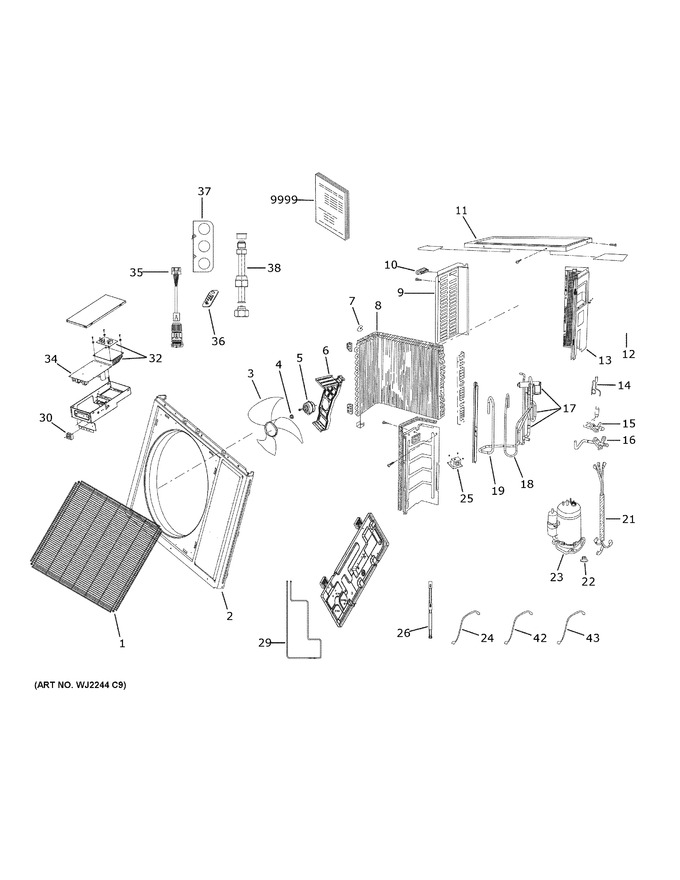

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X26393		Grille		Appelez-nous	-
2	WJ76X23212		Casing		Appelez-nous	-
3	WJ73X22998		Fan Blade				$ 73.09
4	WJ01X22974		Flange Nut		Appelez-nous	-
5	WJ94X23000		Outdoor Fan Motor				$ 480.59
6	WJ65X26478		Outdoor Fan Motor Bracket		Appelez-nous	-
7	WJ01X23219		Sensor Clip		Appelez-nous	-
8	WJ88X26443		Condenser		Appelez-nous	-
9	WJ71X23215		Left Side Panel				$ 36.97
10	WJ01X24664		Handle		Appelez-nous	-
11	WJ76X23220		Top Cover		Appelez-nous	-
12	WJ76X23007		Valve Cover		Appelez-nous	-
13	WJ71X23218		Right Side Panel				$ 52.61
14	WJ53X26447		Eev Valve		Appelez-nous	-
15	WJ53X24973		Liquid Service Valve		Appelez-nous	-
16	WJ53X24975		Vapor Service Valve		Appelez-nous	-
17	WJ53X26448		4-way Valve		Appelez-nous	-
18	WJ53X26449		Discharge Tube		Appelez-nous	-
19	WJ53X26450		Suction Tube		Appelez-nous	-
21	WJ35X26440		Outdoor Wire Harness		Appelez-nous	-
22	WJ01X26442		Compressor Nut		Appelez-nous	-
23	WJ98X26453		Compressor		Appelez-nous	-
24	WJ26X23009		Suction Sensor				$ 22.15
25	WJ27X23157		Reactor		Appelez-nous	-
26	WJ27X26437		Compressor Heater		Appelez-nous	-
29	WJ27X24665		Basepan Heater		Appelez-nous	-
30	WJ27X26435		Terminal Block		Appelez-nous	-
32	WJ26X26459		Inverter Assembly		Appelez-nous	-
34	WJ26X28294		Power Control Board		Appelez-nous	-
35	WJ27X27115		Rj45		Appelez-nous	-
36	WJ76X27114		Cover		Appelez-nous	-
37	WJ65X27113		Strain Relief Bracket		Appelez-nous	-
38	WJ01X27116		1/2" X 3/8" Adapter		Appelez-nous	-
42	WJ26X22984		Sensor Assy. Comp/amb/def				$ 19.93
43	WJ26X23334		Defrost Sensor (b 10k)				$ 9.27
9999	31-5000587		Pm Install Instructions		Appelez-nous	-
9999	49-7835		Pm Installation Manual		Appelez-nous	-
