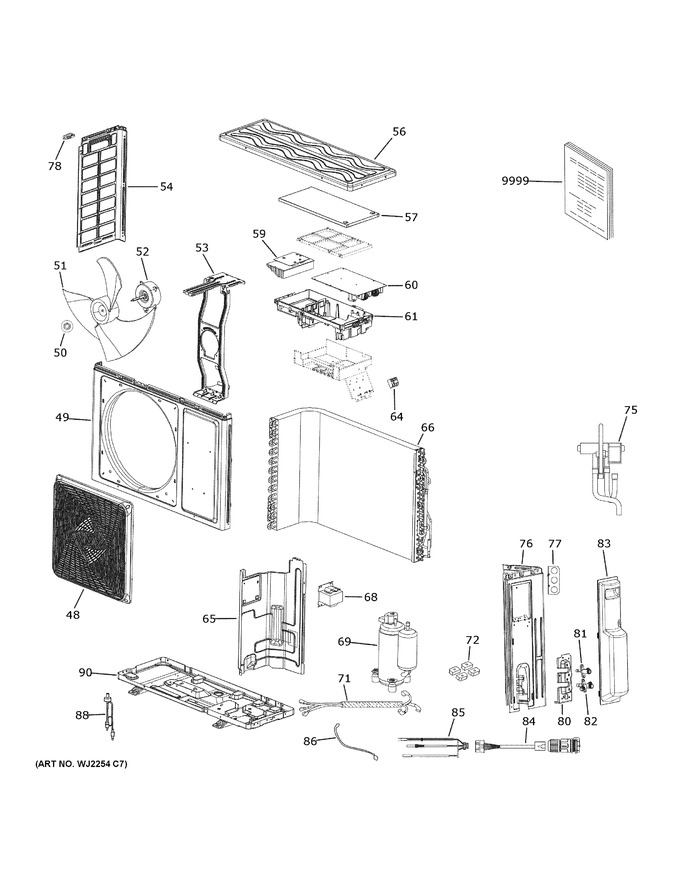

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 48 | WJ71X33076 | Grill |
|
- | |||||
| 49 | WJ71X33099 | Casing |
|
- | |||||
| 50 | WJ01X22974 | Flange Nut |
|
- | |||||
| 51 | WJ73X33079 | Fan Blade |
|
- | |||||
| 52 | WJ94X23000 | Outdoor Fan Motor |
|
$ 480.59 | |||||
| 53 | WJ65X23001 | Outdoor Fan Motor Bracket |
|
- | |||||
| 54 | WJ71X33100 | Left Side Panel |
|
- | |||||
| 56 | WJ76X33235 | Top Cover |
|
- | |||||
| 57 | WJ76X32634 | Control Box Cover |
|
- | |||||
| 59 | WJ26X32853 | Inverter Assembly |
|
- | |||||
| 60 | WJ26X33299 | Power Control Board |
|
- | |||||
| 61 | WJ76X32636 | Electrical Box |
|
- | |||||
| 64 | WJ27X26435 | Terminal Block |
|
- | |||||
| 65 | WJ71X33298 | Partition Panel |
|
- | |||||
| 66 | WJ88X22994 | Outdoor Coil |
|
$ 400.98 | |||||
| 68 | WJ27X23006 | Reactor |
|
- | |||||
| 69 | WJ98X33293 | R32 Compressor |
|
- | |||||
| 71 | WJ35X26440 | Outdoor Wire Harness |
|
- | |||||
| 72 | WJ01X29554 | Vibration Pads |
|
- | |||||
| 75 | WJ53X33297 | 4-way Valve Assy. |
|
- | |||||
| 76 | WJ71X33102 | Right Side Panel |
|
- | |||||
| 77 | WJ65X27113 | Strain Relief Bracket |
|
- | |||||
| 78 | WJ65X33081 | Handle |
|
- | |||||
| 80 | WJ65X33300 | Service Valve Mount |
|
- | |||||
| 81 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 82 | WJ53X24975 | Vapor Service Valve |
|
- | |||||
| 83 | WJ76X33088 | Valve Cover |
|
- | |||||
| 84 | WJ27X27115 | Rj45 |
|
- | |||||
| 85 | WJ26X22984 | Sensor Assy. Comp/amb/def |
|
$ 19.93 | |||||
| 86 | WJ26X23009 | Suction Sensor |
|
$ 22.15 | |||||
| 88 | WJ53X33295 | Electrical Expansion Valve |
|
- | |||||
| 90 | WJ76X33234 | Bottom Plate Assy. |
|
- | |||||
| 9999 | 31-5000276 | Pm Install Instructions |
|
- |
