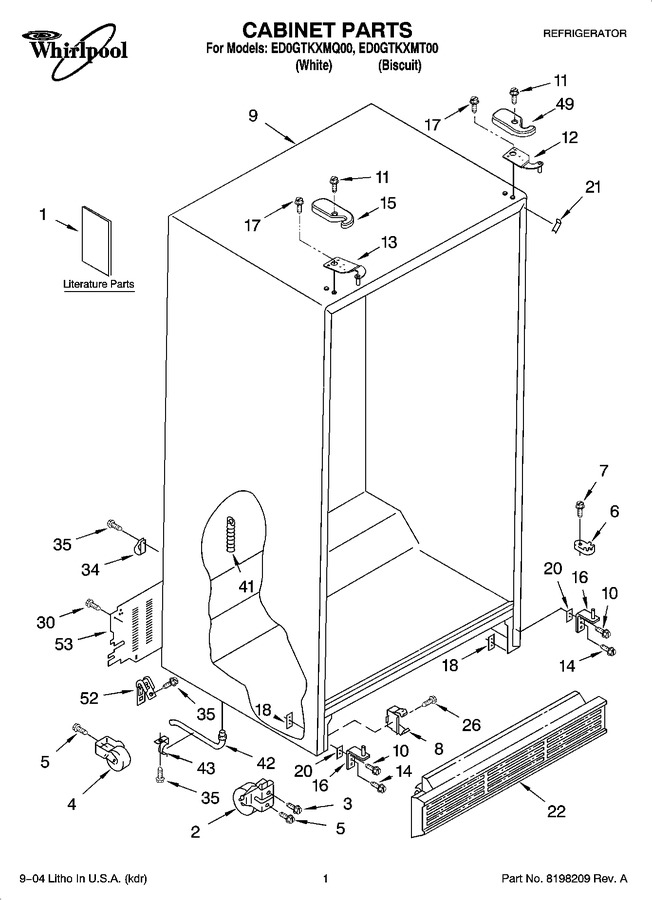

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Air Flow Parts


05 - Freezer Door Parts


06 - Refrigerator Door Parts


07 - Unit Parts


08 - Control Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188772		Use & Care Guide		Appelez-nous	-
1	2260919		Energy Guide		Appelez-nous	-
1	2255136		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
7	WP489483		Screw   (Replaces: 489483)				$ 10.87
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
9	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
10	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 29.09
11	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
12	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
13	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
14	W10856122		Screw   (Replaces: 3400103)				$ 7.76
15	2203407T		Hinge Cover (fc) (biscuit)		Appelez-nous	-
15	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
16	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
17	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
18	WP2304249		Plate, Screw   (Replaces: 2304249)				$ 14.23
20	2209697		Spacer, Hinge				$ 41.25
21	2196094		Filler, Wrapper (white)		Appelez-nous	-
21	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
22	W11167901		Grille (white)   (Replaces: 2198469W)				$ 111.20
22	2198469T		Grille (biscuit)				$ 76.00
26	WP489128		Screw   (Replaces: 488500)				$ 10.88
30	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
34	WP488366		Clamp   (Replaces: 489385)				$ 11.18
35	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
41	W11566763		Drain Ferrule   (Replaces: 940139)			Immediately	$ 50.90
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
49	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
49	2203408T		Hinge Cover (rc) (biscuit)		Appelez-nous	-
52	549193		Clamp-service Cord				$ 13.39
53	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 141.67
