SELECT A DIAGRAM
01 - Chassis Assembly
02 - Chassis Assembly

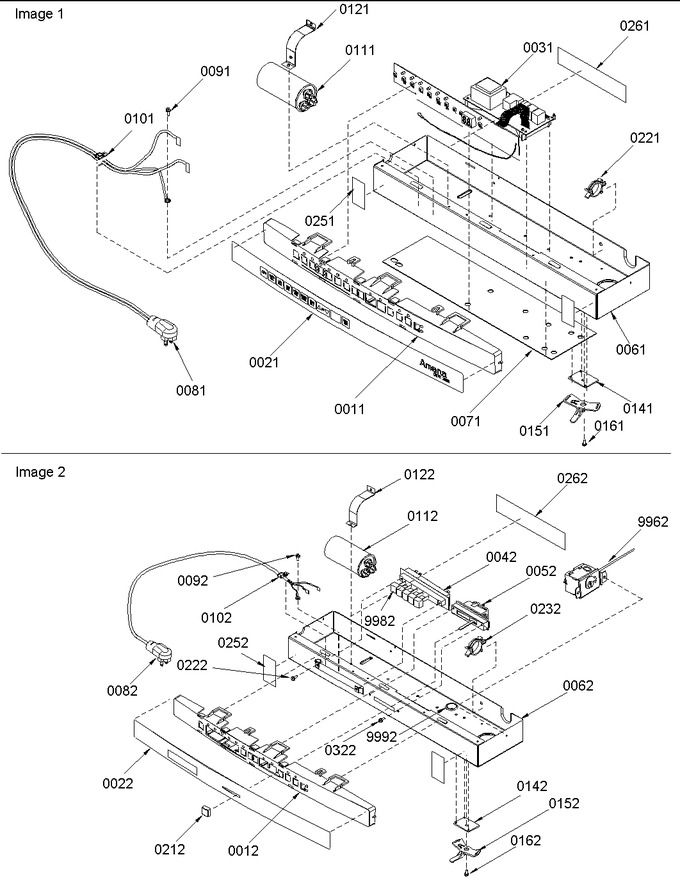

03 - Control Assembly
04 - Outer Case Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 20052905 | Housing, Control |
|
- | |||||
| 22 | Y20056801 | Overlay, Heat/cool |
|
- | |||||
| 42 | 20066701 | Switch, Push Button |
|
- | |||||
| 52 | 20070402 | Thermostat |
|
- | |||||
| 62 | 20063612 | Control Box |
|
- | |||||
| 82 | Y20057503 | Cord, Power |
|
- | |||||
| 92 | M0227803 | Screw |
|
- | |||||
| 102 | M0103906 | Clamp-speed |
|
- | |||||
| 112 | D6789048 | Capacitor |
|
- | |||||
| 122 | C6300511 | Strap, Capacitor |
|
- | |||||
| 142 | 20050701 | Blocking, Indexing Vent |
|
- | |||||
| 152 | 20050801 | Lever-control, Vent |
|
- | |||||
| 162 | M0245104 | Screw-sm |
|
- | |||||
| 212 | Y20066001 | Knob |
|
- | |||||
| 222 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 232 | M0118702 | Clip-guide |
|
- | |||||
| 252 | 10839820 | Gasket, Foam |
|
- | |||||
| 262 | 10839803 | Gasket (ft.) |
|
- | |||||
| 9982 | 20113401 | Knob, Push Button |
|
- | |||||
| 9992 | A4554806 | Snap Bushing |
|
- |
