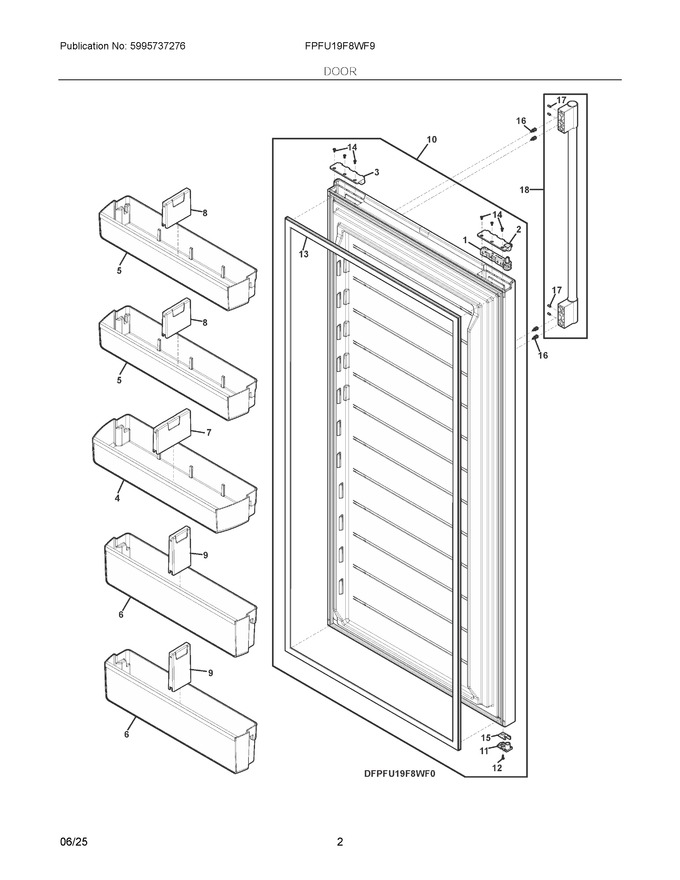

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304524644 | Closer Assembly, Door, Lh Upper |
|
Immediately | $ 105.61 | ||||
| 2 | 5304524624 | Cover, Door Cap, Gray, Lh, Closer Side |
|
$ 16.07 | |||||
| 3 | 5304524625 | Cover, Door Cap, Gray, Rh, Non-closer Side |
|
$ 15.27 | |||||
| 4 | 5304524631 | Bin, Door, Galon (Replaces: 5304529220) |
|
Immediately | $ 165.86 | ||||
| 5 | 5304529219 | Bin, Door, 2 Liter |
|
Immediately | $ 193.11 | ||||
| 6 | 5304529221 | Bin, Door, Tall Items |
|
Immediately | $ 168.23 | ||||
| 7 | 5304524846 | Divider, Gallon, Door Bin |
|
$ 32.13 | |||||
| 8 | 5304524634 | Divider, Door Bin, 2 Liter |
|
$ 32.13 | |||||
| 9 | 5304524635 | Divider, Door Bin, Tall Items |
|
$ 33.74 | |||||
| 10 | 5304524739 | Door Assembly, Lh Swing, Stainless |
|
$ 782.88 | |||||
| 11 | 5304524745 | Bearing, Door, Lower |
|
Immediately | $ 8.84 | ||||
| 12 | 241953903 | Screw, Door Stop, Lower |
|
$ 5.63 | |||||
| 13 | 140190906861 | Gasket, Door, Gray (Replaces: 5304524887) |
|
Immediately | $ 125.04 | ||||
| 14 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 15 | 5304524768 | Stop, Door, Lower Bearing |
|
$ 12.05 | |||||
| 16 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 17 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 124.18 | ||||
| NIA | 241601002 | Wrench, Allen |
|
- |
