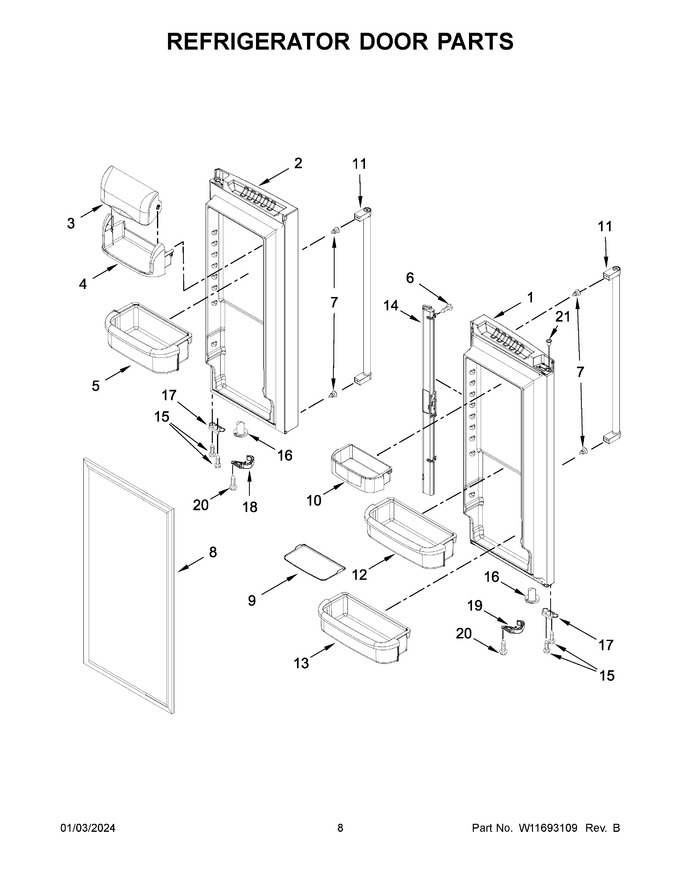

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661555 | Door, Left (stainless) (Replaces: W11622639) |
|
$ 1,072.86 | |||||
| 2 | 13107885SQ | Door, Right (stainless) (Replaces: 13107885S) |
|
$ 1,184.95 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 73.55 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 8 | W10830283 | Gasket, Door Left Hand (grey) |
|
$ 205.44 | |||||
| 9 | W11402028 | Gripper, Gallon (Replaces: W10449760) |
|
Immediately | $ 89.74 | ||||
| 10 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 11 | W11483532 | Handle, Door (stainless) (Replaces: W11339136) |
|
Immediately | $ 178.01 | ||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 77.23 | ||||
| 13 | WP12918704 | Bucket, Gallon (clear) (Replaces: 12918704) |
|
Immediately | $ 87.02 | ||||
| 14 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803AP) |
|
Immediately | $ 177.93 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 18 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 19 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 20 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 21 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 8A | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 |
