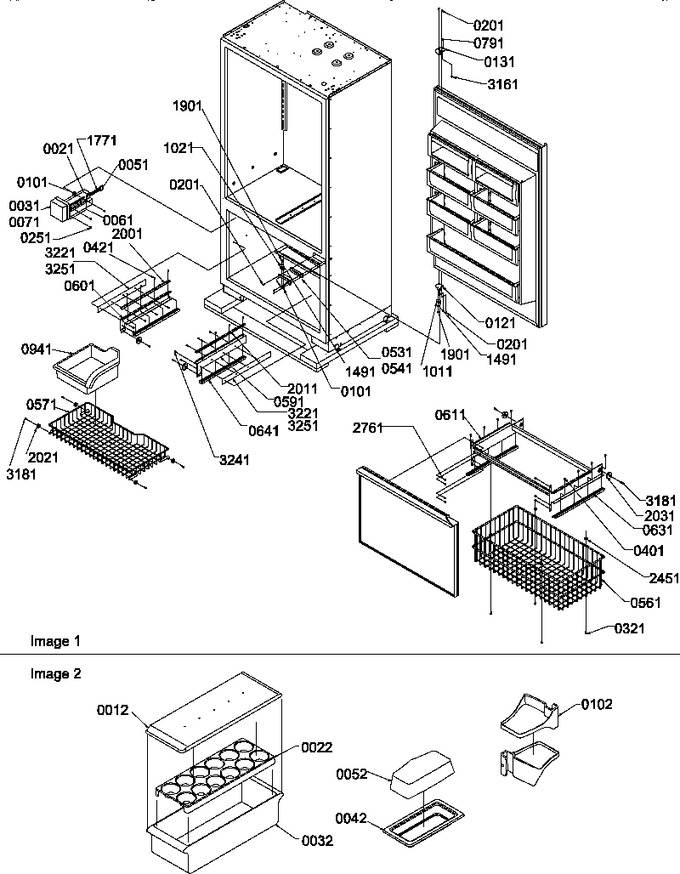

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 21 | B5720302 | Clip |
|
- | |||||
| 22 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 31 | WPW10289690 | Cover, Ice Maker (Replaces: 10519801) |
|
Immediately | $ 8.82 | ||||
| 32 | 10423129 | Bin-utility |
|
- | |||||
| 42 | 12052701 | Dish, Butter |
|
- | |||||
| 51 | WPD7813010 | Harness, Ice Maker Mod (Replaces: D7813004) |
|
Immediately | $ 73.97 | ||||
| 52 | 12070901 | Cover-butter |
|
- | |||||
| 61 | 12296301 | Asm, I/m Shutoff |
|
- | |||||
| 71 | D7824706Q | Ice Maker (Replaces: D7824705) |
|
Immediately | $ 167.35 | ||||
| 101 | 12043006 | Assy, L Ctr Hinge |
|
- | |||||
| 101 | 10526701 | Clamp, Wire |
|
- | |||||
| 102 | 12104901 | Snugger-shelf |
|
- | |||||
| 121 | 12119504 | Hinge-tap L Lw |
|
- | |||||
| 131 | 12043408 | L Up Pivot Plt Assy |
|
- | |||||
| 161 | D7824706Q | Assy, Ice Maker (Replaces: 10563707) |
|
Immediately | $ 167.35 | ||||
| 201 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 251 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 321 | M0253916 | Screw |
|
- | |||||
| 401 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 421 | 8169479 | Screw (Replaces: M0215318) |
|
$ 7.30 | |||||
| 531 | 12068402 | Shim, Ctr. Hinge |
|
- | |||||
| 541 | 12068403 | Shim, Ctr. Hinge |
|
- | |||||
| 561 | 12262301 | Assy, Btm Basket |
|
- | |||||
| 571 | 12234601 | Basket-freezer |
|
- | |||||
| 591 | 12393701 | Assy, R Brkt |
|
- | |||||
| 601 | 12393702 | Assy, L Brkt |
|
- | |||||
| 611 | 12087901 | Assy, Basket Frame |
|
- | |||||
| 631 | 12189101 | Glide, Bottom |
|
- | |||||
| 641 | 12189201 | Glide, Top |
|
- | |||||
| 791 | 40370P01 | Nylon Flat Washer |
|
- | |||||
| 941 | 12193401 | Pan-ice |
|
- | |||||
| 1011 | 12055602 | Closure-door |
|
- | |||||
| 1021 | 12055601 | Closure-door |
|
- | |||||
| 1491 | M0272803 | Lock Washer |
|
- | |||||
| 1771 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 1901 | M0202528 | Screw |
|
- | |||||
| 2001 | 12128301 | Glide, L. Up Frz Bskt |
|
- | |||||
| 2011 | 12128302 | Glide, R. Up Frz Bskt |
|
- | |||||
| 2021 | 12088001 | Roller, Up Bracket |
|
- | |||||
| 2031 | 12088101 | Roller, Outer Glide |
|
- | |||||
| 2451 | M0274067 | Washer, Nylon |
|
- | |||||
| 2761 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 3161 | M0220928 | Screw, Shoulder |
|
- | |||||
| 3181 | M0220957 | Screw-shldr |
|
- | |||||
| 3221 | 12131902 | Shim-fz Basket |
|
- | |||||
| 3241 | M0253258 | Screw-tf |
|
- | |||||
| 3251 | 12131901 | Shim-fz Basket |
|
- | |||||
| NI | M0270510 | Washer |
|
- | |||||
| NI | 12064402 | Toe Grille-e Ct |
|
- | |||||
| NI | 12064302 | Toe Grille-e Ct |
|
- | |||||
| NI | B5720304 | Clip |
|
- | |||||
| NI | M0223509 | Screw-lag |
|
- | |||||
| NI | M0010101 | Wire, Staple (office Staple) |
|
- | |||||
| NI | WP98008545 | Screw, Sm (blk) (Replaces: M0210443) |
|
$ 18.60 | |||||
| NI | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 8.25 |
