Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11633286 Door, Refrigerator (rh Model) Appelez-nous -
2 W11685838 Gasket, Refrigerator Door   (Replaces: W11633290) Special Order $ 329.97

3 W11633293 Bin, Door Appelez-nous -
4 W11686098 Housing, Water Filter   (Replaces: W11125031) Special Order $ 347.38

5 W11686099 Liner, Door Bin   (Replaces: W11633296) Appelez-nous -
6 W11633301 Hinge, Door (rh Model) Appelez-nous -
7 W11686100 Support, Door Bin (left)   (Replaces: W11633303) Appelez-nous -
8 W11686659 Cap, Door Bin Support (top Right/bottom Left)   (Replaces: W11633306) Appelez-nous -
9 W11686662 Cap, Door Bin Support (top Left/bottom Right)   (Replaces: W11633305) Appelez-nous -
10 W11686660 Support, Door Bin (right)   (Replaces: W11633304) Appelez-nous -
11 W11633308 Air Duct, Upper Appelez-nous -
12 W11633309 Air Duct, Middle Appelez-nous -
13 W11685938 Interface, User   (Replaces: W11633310) In-Stock Immediately $ 822.39

14 W11686663 Panel, Ceiling   (Replaces: W11633311) Special Order $ 878.42

15 W11686664 Cover, Crisper   (Replaces: W11633315) Appelez-nous -
16 W11686665 Shelf, Glass   (Replaces: W11633316) Appelez-nous -
17 W11633317 Drawer, Small Crisper Appelez-nous -
18 W11633318 Drawer, Tall Crisper Appelez-nous -
19 W11686777 Slide, Crisper Drawer (left)   (Replaces: W11633319) Appelez-nous -
20 W11686778 Slide, Crisper Drawer (right)   (Replaces: W11633320) Appelez-nous -
21 W11633321 Light, Led Appelez-nous -
22 W11633322 Cover, Mounting Brackets Appelez-nous -
23 W11686779 Roller, Rear   (Replaces: W11633323) In-Stock Immediately $ 245.93

24 W11686780 Roller, Front   (Replaces: W11633324) In-Stock Immediately $ 243.18

25 W11686781 Leg, Levelling   (Replaces: W11633325) Special Order $ 156.23

26 W11685629 Compressor, Freezer Compartment (includes Inverter)   (Replaces: W11633326) Appelez-nous -
27 W11685630 Fan, Condenser   (Replaces: W11633327) Appelez-nous -
28 W11685781 Condenser   (Replaces: W11633328) Appelez-nous -
29 W11685785 Grille, Lower   (Replaces: W11633329) Appelez-nous -
30 W11109499 Drier (service Drier Without Dye)   (Replaces: W10805035) In-Stock Immediately $ 39.12

31 W11633331 Tray, Defrost Drain Appelez-nous -
32 W11633333 Cord, Power Appelez-nous -
33 W11686782 Buzzer   (Replaces: W11633334) Appelez-nous -
34 W11633336 Thermistor Special Order $ 113.73

35 W11685805 Evaporator, Refrigerator Compartment   (Replaces: W11633337) Appelez-nous -
36 W11633498 Cover, Control Board Appelez-nous -
37 W11633499 Bumper, Door Appelez-nous -
38 W11686988 Power Supply, Led (16w)   (Replaces: W11633500) Appelez-nous -
39 W11685633 Control, Electronic   (Replaces: W11633501) Appelez-nous -
40 W11633502 Fan, Rc Evaporator In-Stock Immediately $ 397.13

41 W11686989 Grommet, Fan   (Replaces: W11633504) Appelez-nous -
42 W11686990 Reed Switch, Door   (Replaces: W11633505) Special Order $ 177.30

43 W11686991 Support, Crisper Cover   (Replaces: W11633506) Appelez-nous -
44 W11633507 Bracket, Lateral Mounting Appelez-nous -
45 W11633508 Thumb Screw, Drawers To Slides Appelez-nous -
46 W11686096 Washer, Drawers To Slides   (Replaces: W11685016) Appelez-nous -
47 W11686992 Cut-off, Thermal   (Replaces: W11633509) Special Order $ 460.44

48 W11686993 Pan, Ice   (Replaces: W11633511) Appelez-nous -
49 W11685631 Ice Maker   (Replaces: W11633513) Special Order $ 632.44

50 W11633514 Tube, Water Inlet Appelez-nous -
51 W11685806 Valve, Water   (Replaces: W11633515) Special Order $ 627.74

52 W11685807 Valve, Safety Water   (Replaces: W11633516) Special Order $ 643.03

53 W11633583 Kit, Filter Installation (includes Water Filter, Filter Cap, 3/4" To 1/4" Adapter, Ice Scoop) Appelez-nous -
54 EDR2RXD1B Filter, Water   (Replaces: W10680605) In-Stock Immediately $ 49.99

55 W11687001 Heater, Fill Tube   (Replaces: W11633535) Appelez-nous -
56 W11685808 Evaporator, Freezer Compartment   (Replaces: W11633536) Appelez-nous -
57 W11685632 Heater, Defrost   (Replaces: W11633537) Special Order $ 679.73

58 W11685809 Gasket, Freezer Door   (Replaces: W11633538) Appelez-nous -
59 W11633540 Drawer, Freezer (small) Appelez-nous -
60 W11633541 Drawer, Freezer (large) Appelez-nous -
61 W11633545 Door, Freezer (rh Model) Appelez-nous -
62 W11687003 Slide, Large Freezer Drawer (left)   (Replaces: W11633546) Appelez-nous -
63 W11687002 Slide, Large Freezer Drawer (right)   (Replaces: W11633547) Appelez-nous -
64 W11687005 Slide, Small Freezer Drawer (left)   (Replaces: W11633548) Appelez-nous -
65 W11687004 Slide, Small Freezer Drawer (right)   (Replaces: W11633550) Appelez-nous -
66 W11633551 Fan, Fc Evaporator Special Order $ 339.54

67 W11687007 Power Supply, Led (12w)   (Replaces: W11633552) Special Order $ 411.41

68 W11687134 Support, Fill Tube Heater   (Replaces: W11633557) Appelez-nous -
69 W11685634 Compressor, Refrigerator Compartment (includes Inverter)   (Replaces: W11633561) Appelez-nous -
70 W11633563 Filter, Emc Appelez-nous -
71 W11687135 Regulator, Water Pressure   (Replaces: W11633564) Appelez-nous -
72 W11687137 Light Strip, Led   (Replaces: W11633571) Special Order $ 826.95

73 W11633574 Inverter, Refrigerator Compressor Appelez-nous -
74 W11633575 Inverter, Freezer Compressor Appelez-nous -
75 W11633581 Hardware, Panel Installation Appelez-nous -
76 W11633582 Hardware, Anti-tip Special Order $ 191.18

77 W11686097 Ladder, Shelf   (Replaces: W11685017) Appelez-nous -
78 W11685939 Grille, Top   (Replaces: W11685018) Appelez-nous -
79 W11685940 Bracket, Top Grille (right)   (Replaces: W11685019) Appelez-nous -
12A W11633567 Air Duct, Lower Appelez-nous -
1A W11633285 Door, Refrigerator (lh Model) Special Order $ 2,357.01

32A W11687136 Harness, Compressor To Emc Filter   (Replaces: W11633570) Appelez-nous -
61A W11633544 Door, Freezer (lh Model) Special Order $ 1,944.05

6A W11633300 Hinge, Door (lh Model) Appelez-nous -
79A W11685941 Bracket, Top Grille (left)   (Replaces: W11685020) Appelez-nous -
7A W11686095 Support, Shelf   (Replaces: W11685015) Special Order $ 309.28

NI ARIC2C0A5FCA0D789048A3502ED1190B058 Refrigerant Charge Refrigerator 48 Grams (r600a) Freezer 55 Grams (r600a) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

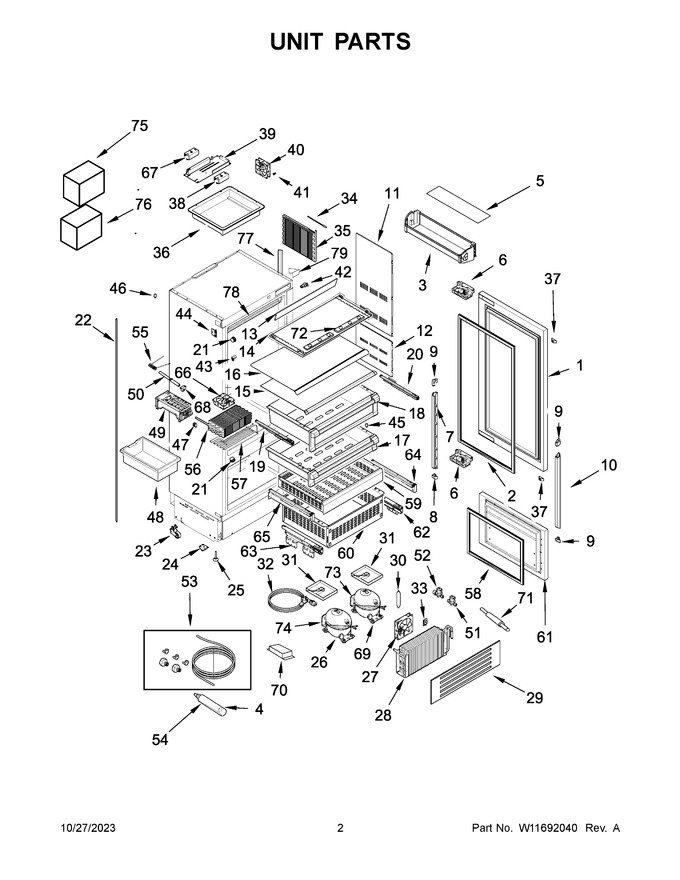

Diagram for JBBFL30NMX00
