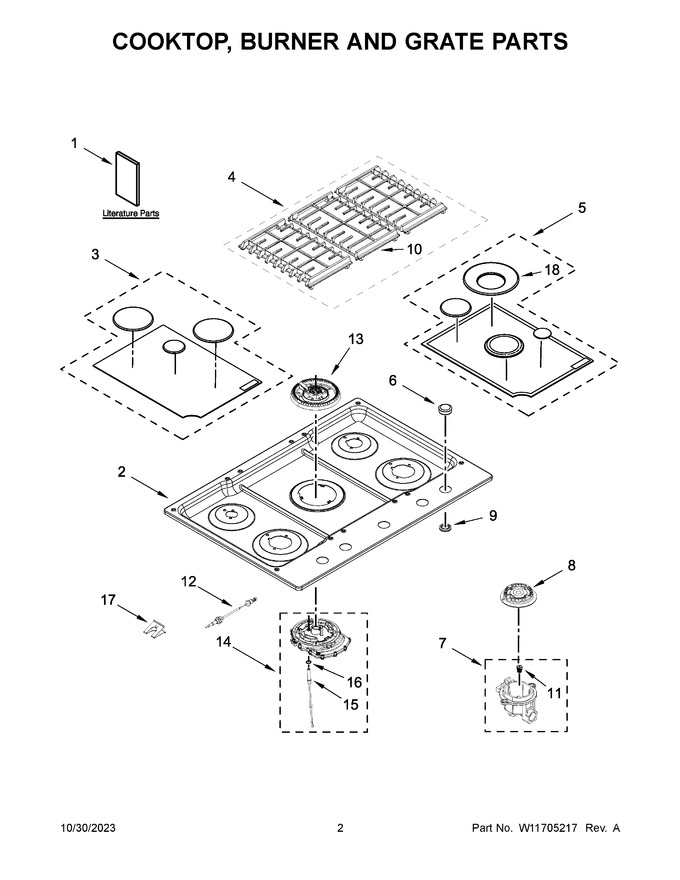

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10672375		Instructions, Undercounter Install		Appelez-nous	-
2	W10722084		Cooktop (stainless)			Immediately	$ 534.19
3	W10814915		Kit, Burner Cap (black)   (Replaces: W10617345)			Immediately	$ 103.82
4	W11503033		Grate Kit (includes 3 Grates) (black)   (Replaces: W11108276)				$ 387.45
5	W10811958		Kit, Burner Cap (black (includes Melt Cap))   (Replaces: W10635600)			Immediately	$ 180.17
6	WPW10545849		Knobs, Cooktop (stainless)   (Replaces: W10545849)			Immediately	$ 138.31
7	W10674920		Holder, Orifice (10k) (left Front And Right Front)				$ 40.45
8	WP8286815		Head, Burner (left Front And Right Front)   (Replaces: 8286815)			Immediately	$ 124.59
9	W10853046		Bezel (stainless)   (Replaces: W10593536)			Immediately	$ 74.53
10	W10583862		Grate, Center				$ 314.86
11	W10674732		Orifice (10k) (left Front And Right Front)				$ 20.64
12	W11507531		Wiring, Electrode (left Front And Right Front)   (Replaces: W11439331)				$ 60.82
13	W10836409		Spreader, Burner   (Replaces: W10808715)			Immediately	$ 136.94
14	W10625853		Assembly, Burner Base (17k)				$ 281.57
15	W11610134		Electrode, Burner   (Replaces: W10657994)			Immediately	$ 31.24
16	W10416057		O-ring				$ 78.13
17	8286863		Spring, Electrode				$ 76.92
18	W10617405		Burner Cap, Outer (black)		Appelez-nous	-
11A	W10151353		Orifice (left Rear)		Appelez-nous	-
11B	W11727825		Orifice (right Rear)   (Replaces: W10674728)				$ 33.22
12A	W11507532		Wiring, Electrode (left Rear And Right Rear)   (Replaces: W11439332)			Immediately	$ 60.89
1A	W11468901		Owner's Manual		Appelez-nous	-
1B	W11466943		Quick Start Guide		Appelez-nous	-
7A	W10674918		Holder, Orifice (6k) (left Rear)			Immediately	$ 32.69
7B	W10674919		Holder, Orifice (7k) (right Rear)				$ 35.09
8A	WP8286813		Head, Burner (left Rear)   (Replaces: 8286813)				$ 100.24
8B	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)			Immediately	$ 124.59
NI	7101P06260		Screw (for Tie Down Bracket)		Appelez-nous	-
NI	W11706296		Harness, Switch   (Replaces: W11632147)				$ 80.84
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11637584		Harness, Spark Module   (Replaces: W10878749)				$ 33.34
NI	W10617403		Insulation, Cooktop				$ 212.21
NI	W10853432		Kit, Lp Conversion   (Replaces: W10676662)				$ 86.57
NI	W10392003		Cord, Power				$ 161.67
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	3801F93551		Bracket, Tie Down		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
NI	ARI58D8D5704EFE78304A1211D0069DE08B		Insulation Parts Not Illustrated		Appelez-nous	-
