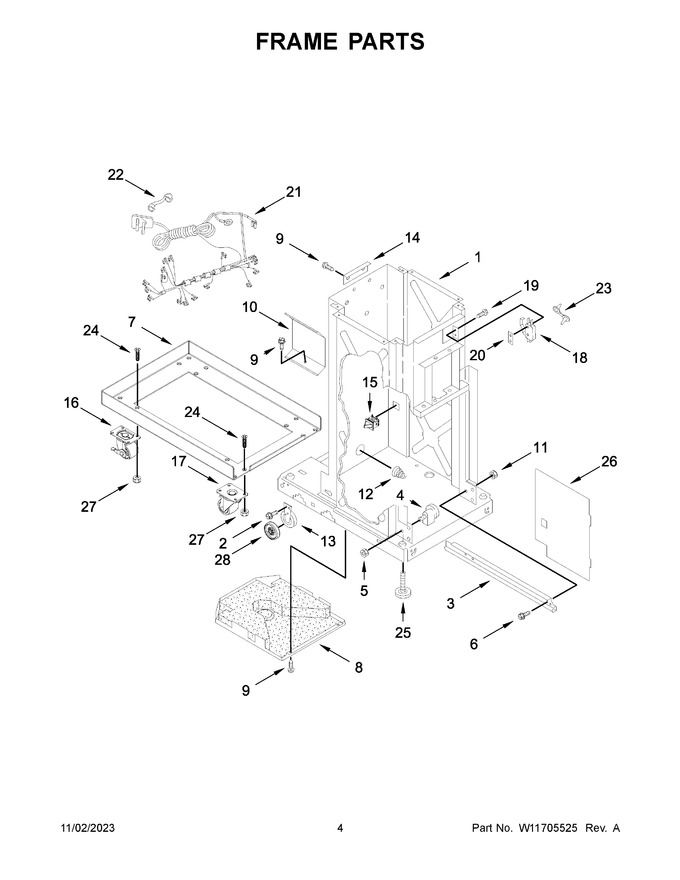

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARIA0DF71CCD78F1596229197A948AC01E3		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP3351614		Screw   (Replaces: 780034)			Immediately	$ 7.30
3	W11722978		Right Hand   (Replaces: 9870976)				$ 141.33
4	882688		Bearing, Roller   (Replaces: 4153788)				$ 21.19
5	WP776356		Locknut   (Replaces: 776356)				$ 8.53
6	WP486754		Screw   (Replaces: 777458)				$ 8.01
7	W11729129		Base, Frame   (Replaces: W11233659)		Appelez-nous	-
8	WP780437		Pan, Bottom   (Replaces: 9870167)				$ 316.61
9	WP489478		Screw   (Replaces: W10001260)				$ 8.18
10	9870867		Shield, Slide Track		Appelez-nous	-
11	W11759042		Nut, Hex   (Replaces: 3400938)		Appelez-nous	-
12	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
13	W11023674		Wheel, Leveler   (Replaces: 9870585)				$ 54.05
14	775668		Angle, Frame Plate		Appelez-nous	-
15	W11243179		Switch, Drawer Safety   (Replaces: W10804315)				$ 74.74
16	9871956		Caster, Rigid		Appelez-nous	-
17	9871957		Caster, Swivel		Appelez-nous	-
18	WP777811		Switch, Top Limit And Directional   (Replaces: 777811)			Immediately	$ 116.62
19	777849		Screw				$ 7.36
20	777850		Plate, Nut				$ 77.13
21	W11729130		Wiring Harness & Power Cord   (Replaces: W10830604)		Appelez-nous	-
22	9872015		Relief, Strain (power Cord)		Appelez-nous	-
23	W11705832		Clamp, Wire   (Replaces: 777035)		Appelez-nous	-
24	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
25	WPW10001130		Foot   (Replaces: 775526)			Immediately	$ 7.80
26	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
27	WP486692		Nut, Self Locking   (Replaces: 486692)				$ 8.43
28	W11672206		Wheel   (Replaces: 780120)		Appelez-nous	-
3A	WP9870975		Left Hand   (Replaces: 9870975)				$ 112.70
